Fuel Pump Driver Module Connector - C3239

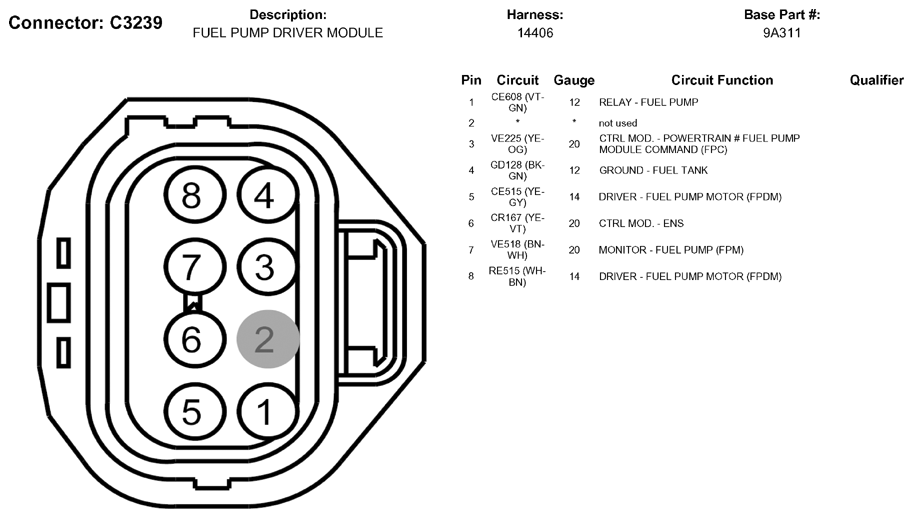

Fig 1: Fuel Pump Driver Module Connector End View - (C3239)

G05790936

Courtesy of FORD MOTOR CO.
