Anti-Lock Brake System Module Connector - C135

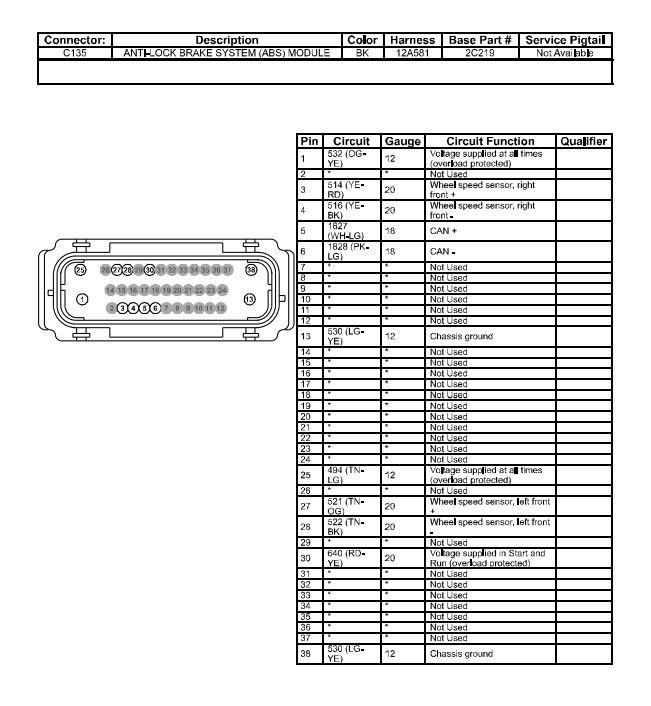

Fig 1: Anti-Lock Brake System Module Connector End View - (C135)

G05790664

Courtesy of FORD MOTOR CO.
