Wheel Speed Sensor - Front: Notes

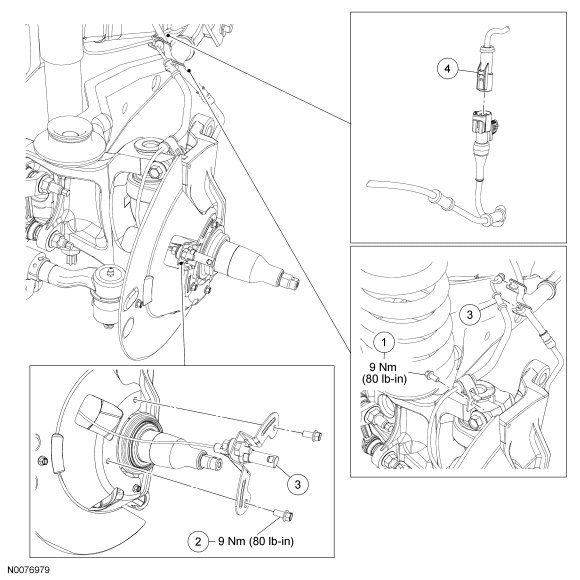

Fig 1: Exploded View Of Front Wheel Speed Sensor With Torque Specifications
GF0044734Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N611172 Front wheel speed sensor harness retainer bolt
2 N611172 Front wheel speed sensor bolt
3 2C204 LH/ 2C205 RH Front wheel speed sensor
4 - Front wheel speed sensor harness connector (part of 12A581)
