Passenger Side Front Seat Control Switch Connector

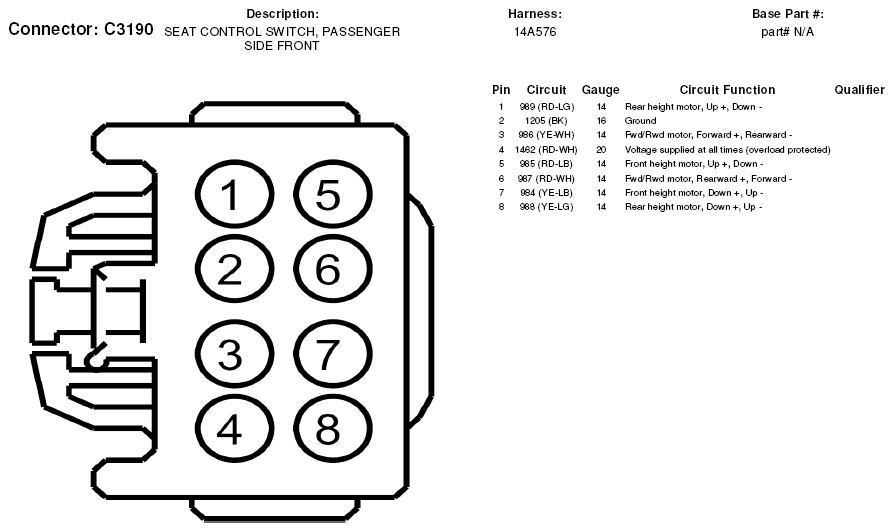

Fig 1: Passenger Side Front Seat Control Switch Connector End View (C3190)

G05602991
