LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2008
>>
Mustang GT, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector Views
>>
Left Front Channel Subwoofer Amplifier Connector
Left Front Channel Subwoofer Amplifier Connector

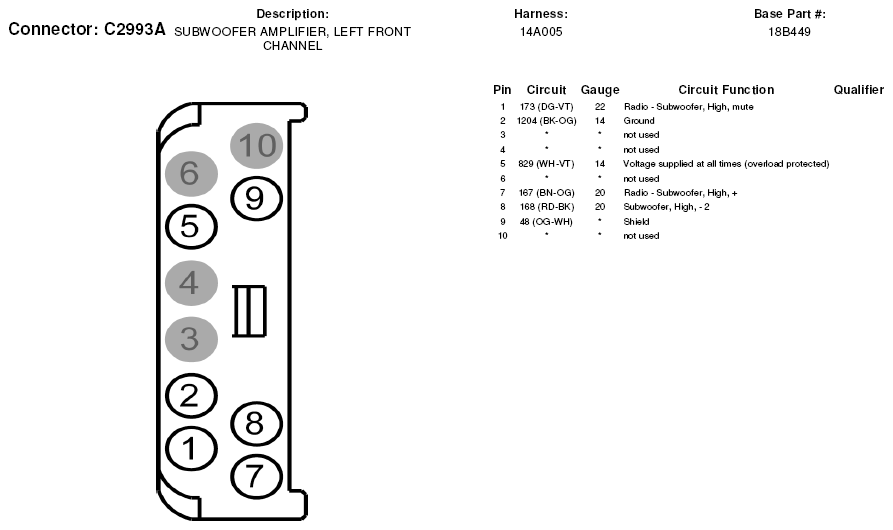

Fig 1: Left Front Channel Subwoofer Amplifier Connector End View (C2993A)

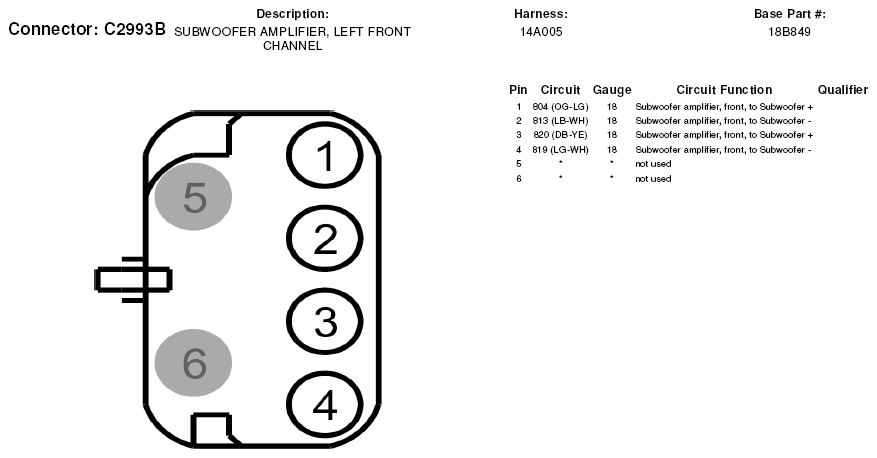

Fig 2: Left Front Channel Subwoofer Amplifier Connector End View (C2993B)
