Transmission Shift Selector Connector

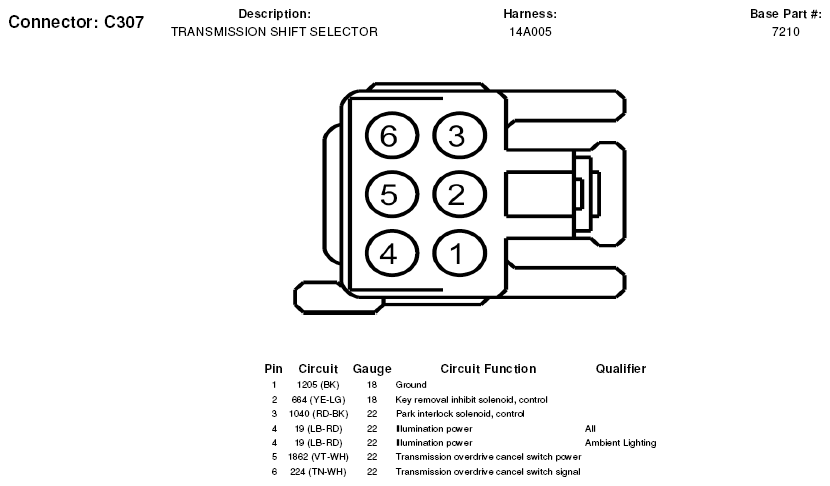

Fig 1: Transmission Shift Selector Connector End View (C307)

G05602844
