Occupant Classification Sensor Connector

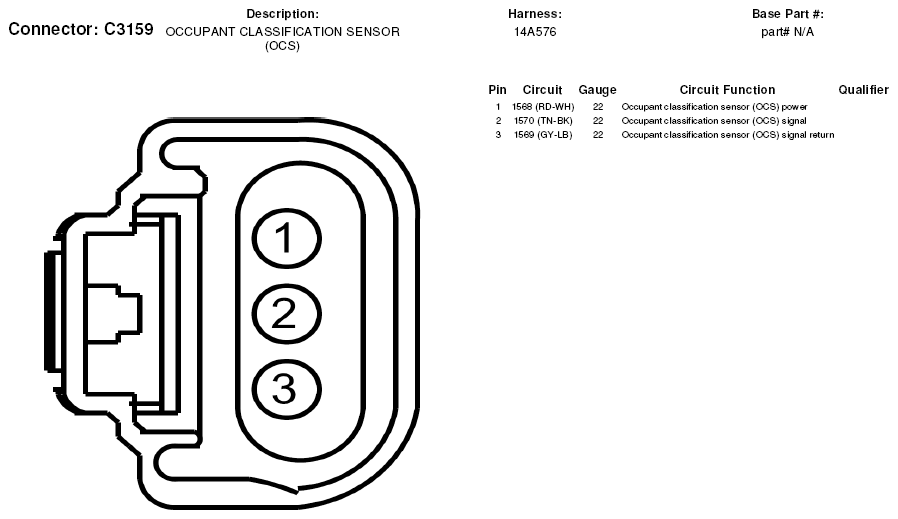

Fig 1: Occupant Classification Sensor Connector End View (C3159)

G05602990
