Left Front Lumbar Control Switch Connector

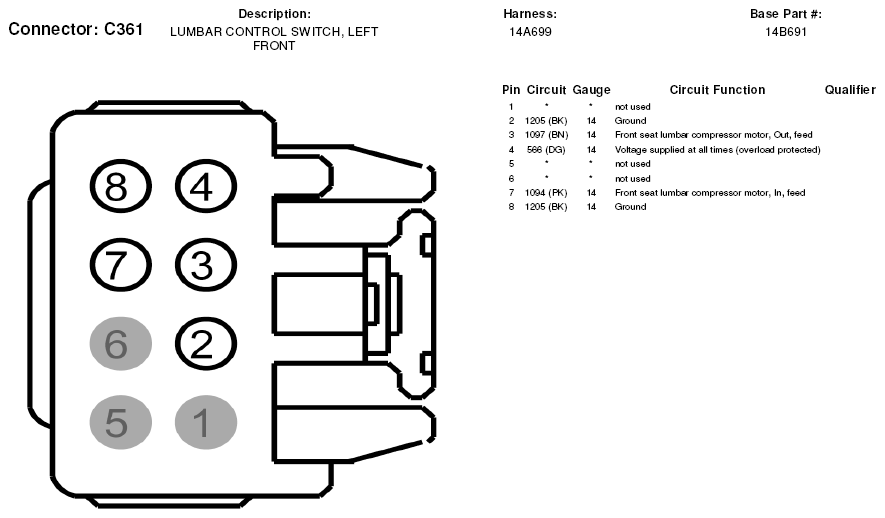

Fig 1: Left Front Lumbar Control Switch Connector End View (C361)

G05602857
