Home >> Ford >> 2008 >> Mustang Base, 2D Convertible, Standard >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Intake Manifold Running Control Connector

Intake Manifold Running Control Connector

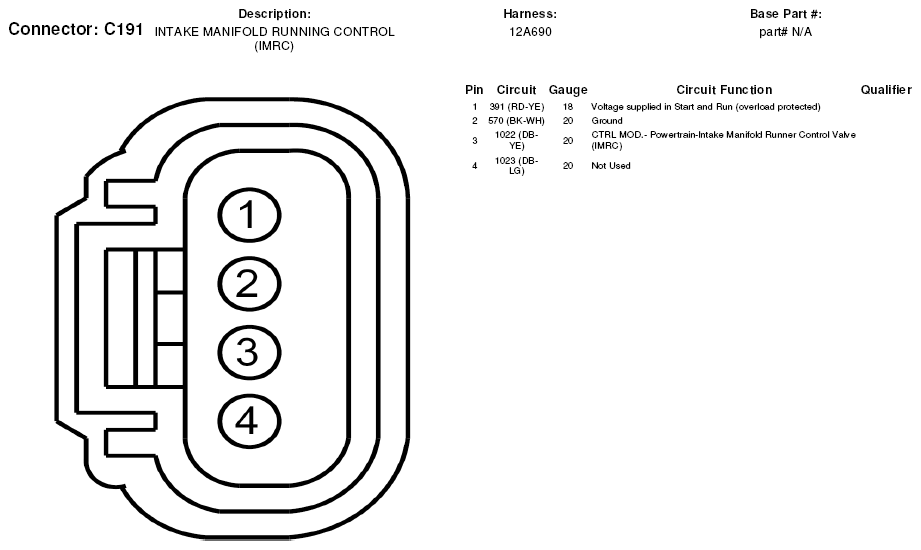

Fig 1: Intake Manifold Running Control Connector End View (C191)

G05602808
