Overdrive Brake and Coast Clutch Drum Assembly: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Compressor, Clutch Spring	307-015 (T65L-77515-A)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal	307-049 (T74P-77404-A)

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

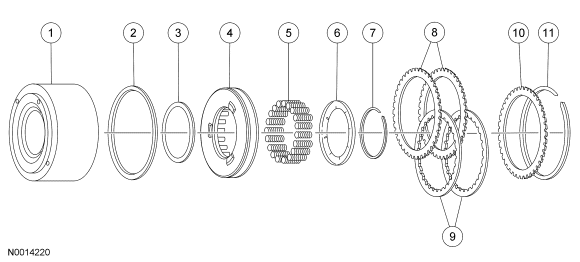

Fig 1: Exploded View Of Overdrive Brake & Coast Clutch Drum Assembly

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7L669	Coast clutch drum
2	7A548	Overdrive piston outer seal ring
3	7D404	Overdrive piston inner seal ring
4	7A262	Overdrive clutch piston
5	7A480	Overdrive piston spring (20 required)
6	7A527	Coast clutch piston spring retainer
7	E860125-S	Retaining ring
8	7B442	Coast clutch external plates - steel (2 required)
9	7B164	Coast clutch internal plates - friction (2 required)
10	7B066	Coast clutch pressure plate
11	E860126S/129S	Retaining ring (select fit)
