Transmission Fluid Cooler: Notes
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

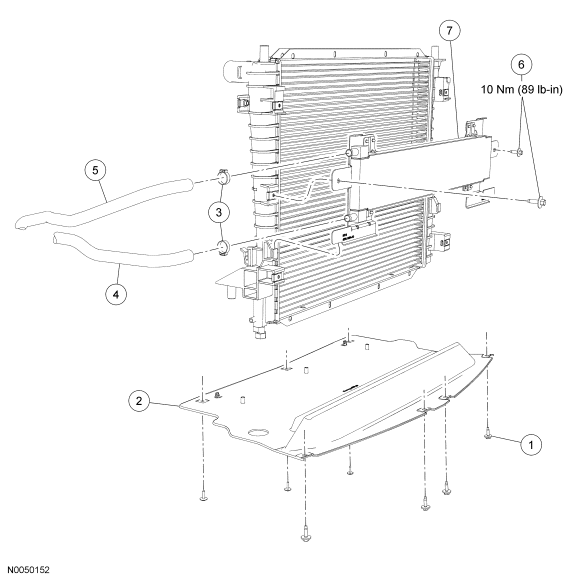

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Lower air deflector screw (7 required) |
| 2 | - | Lower air deflector |
| 3 | 376240 | Transmission fluid cooler-to-hose clamps |
| 4 | 7W063 | Transmission fluid cooler inlet hose |
| 5 | 7W064 | Transmission fluid cooler outlet hose |
| 6 | HS1 | Transmission fluid cooler screws |
| 7 | 7A095 | Transmission fluid cooler |
