Transmission Fluid Cooler Tubes: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Disconnect Tool, Transmission Cooler Line	307-569

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

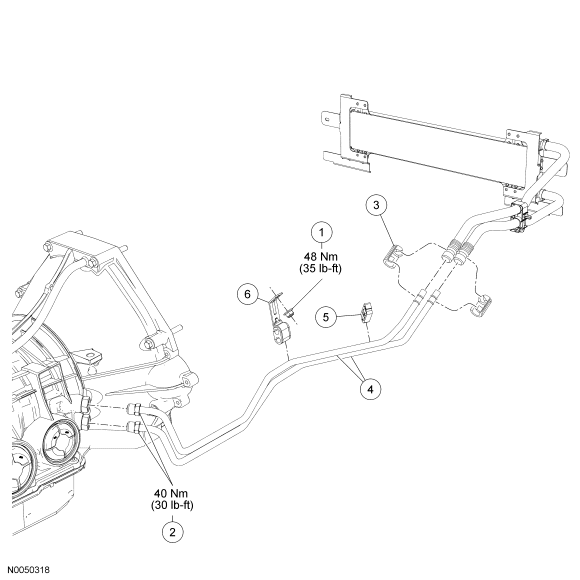

Fig 1: Exploded View Of Transmission Fluid Cooler Tubes With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Transmission fluid cooler tube bracket nut
2	-	Transmission fluid cooler tube nuts (part of 7H420)
3	7J081	Transmission fluid cooler tube quick connect secondary latch
4	7H420	Transmission fluid cooler tubes
5	-	Transmission fluid cooler tube retainer (part of 7H420)
6	-	Transmission fluid cooler tube bracket (part of 7H420)
