Transmission Cooling

This vehicle with an automatic transmission is equipped with an auxiliary transmission fluid cooler. The cooler transfers heat from the transmission fluid to the ambient air.

For transmission fluid cooler flow test, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 5R55S article.

For transmission fluid cooler backflushing and cleaning, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 5R55S article.

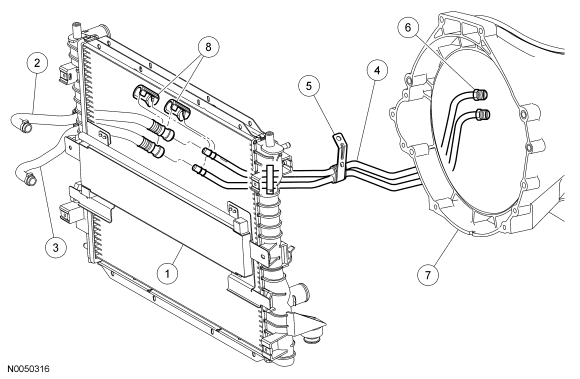

Fig 1: Exploded View Of Transmission Fluid Cooler Tubes (4.6L Engine)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7A095	Auxiliary oil cooler
2	7W064	Fluid cooler outlet hose
3	7W063	Fluid cooler inlet hose
4	7H420	Fluid cooler tube assembly
5	-	Fluid cooler tube assembly bracket (part of 7H420)
6	-	Fluid cooler tube assembly nut (part of 7H420)
7	7005	Transmission case
8	7J081	Transmission fluid cooler tube quick connect secondary latches

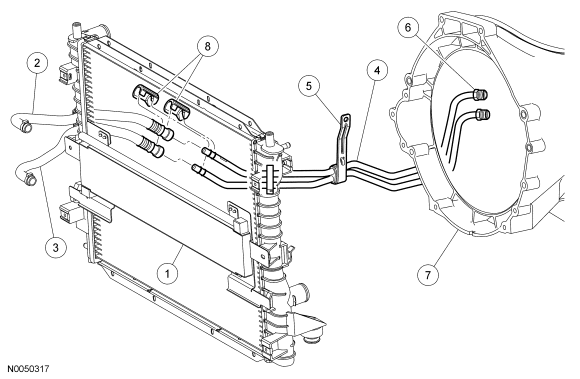

Fig 2: Exploded View Of Transmission Fluid Cooler Tubes (4.0L Engine)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7A095	Auxiliary oil cooler
2	7W064	Fluid cooler outlet hose
3	7W063	Fluid cooler inlet hose
4	7H420	Fluid cooler tube assembly
5	-	Fluid cooler tube assembly bracket (part of 7H420)
6	-	Fluid cooler tube assembly nut (part of 7H420)
7	7005	Transmission case
8	7J081	Transmission fluid cooler tube quick connect secondary latches
