Fuel Level Sender: Notes

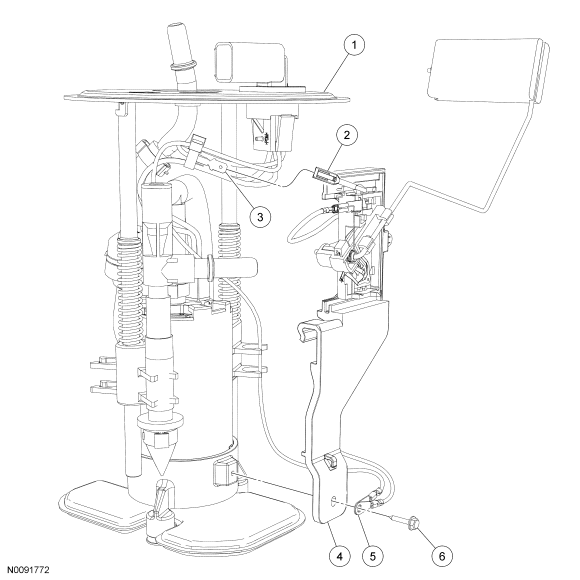

Fig 1: Exploded View Of Fuel Level Sender - 4.0L Single Overhead Camshaft (SOHC) & 4.6L (3V) Vehicles
GF0046474Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9H307 Fuel Pump (FP) module
2 - Fuel level sender electrical connector (part of 9A299)
3 - Fuel level sender electrical connector (part of 9H307)
4 9A299 Fuel level sender
5 - Fuel level sender electrical connector eyelets (part of 9A299 and 9H307)
6 - Fuel level sender screw (part of 9H307)

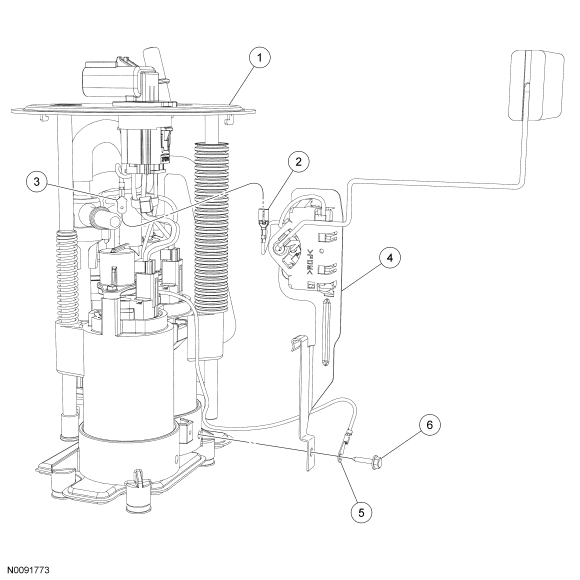

Fig 2: Exploded View Of Fuel Level Sender - 5.4L (4V) Vehicles
GF0046475Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9H307 Fuel Pump (FP) module
2 - Fuel level sender electrical connector (part of 9A299)
3 - Fuel level sender electrical connector (part of 9H307)
4 9A299 Fuel level sender
5 - Fuel level sender electrical connector eyelets (part of 9H307)
6 - Fuel level sender screw (part of 9H307)
