Engine Coolant Temperature Sensor Connector

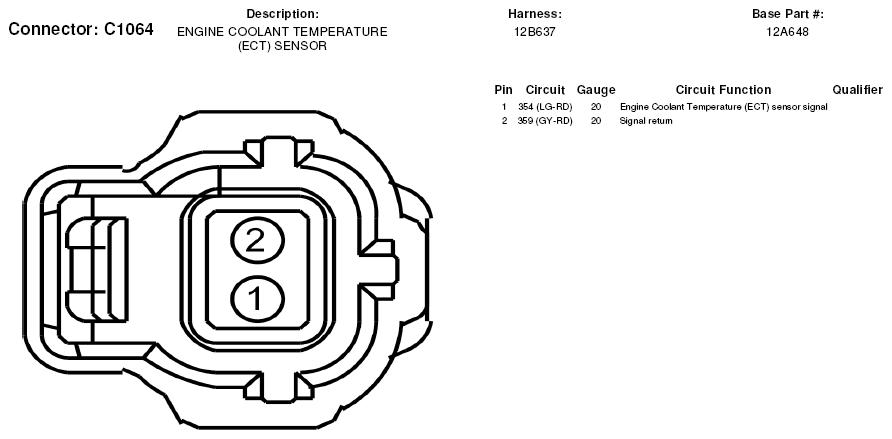

Fig 1: Engine Coolant Temperature Sensor Connector End View (C1064)

G05602923
