Passenger Side Front Seat Adjust Switch Connector

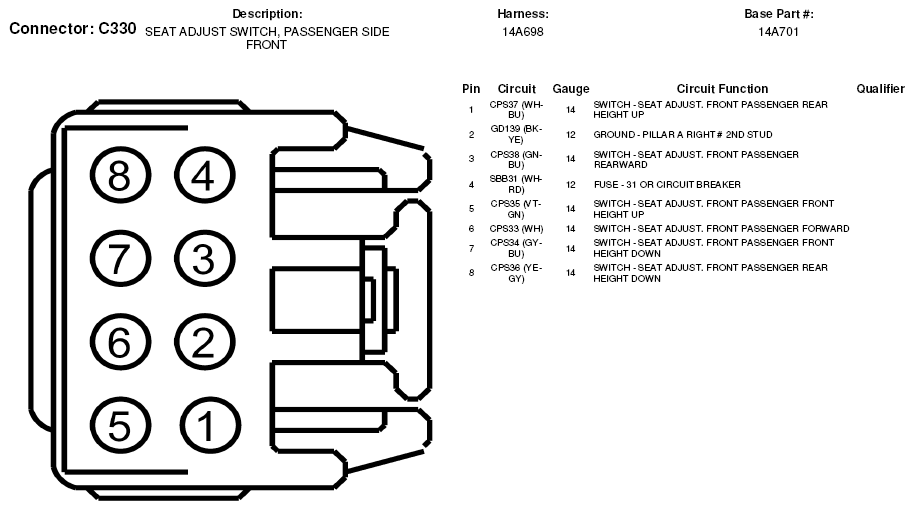

Fig 1: Passenger Side Front Seat Adjust Switch Connector End View (C330)

G05602477
