Driver Seat Module Connector

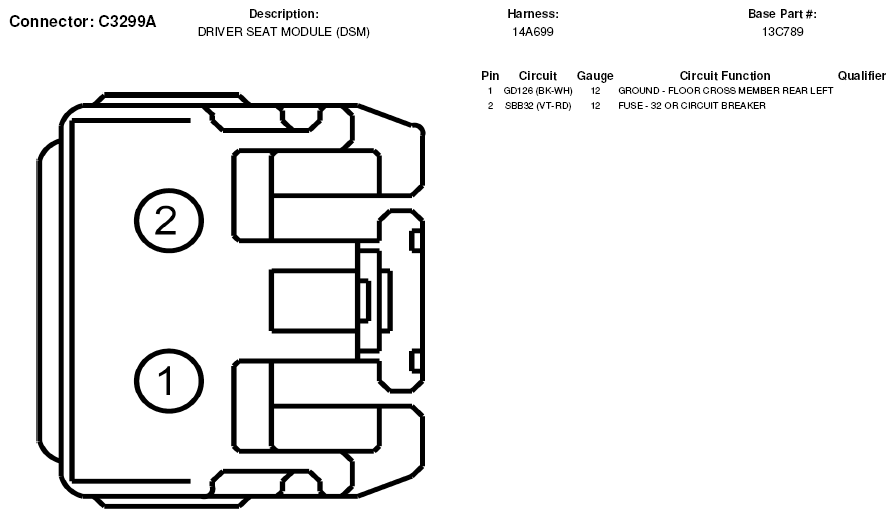

Fig 1: Driver Seat Module Connector End View (C3299A)
G05602707

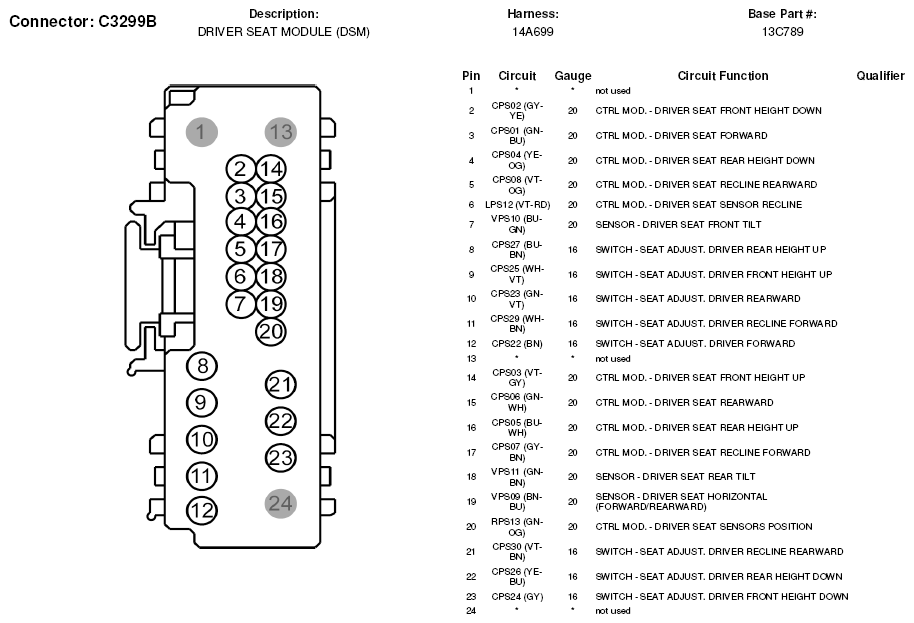

Fig 2: Driver Seat Module Connector End View (C3299B)
G05602708

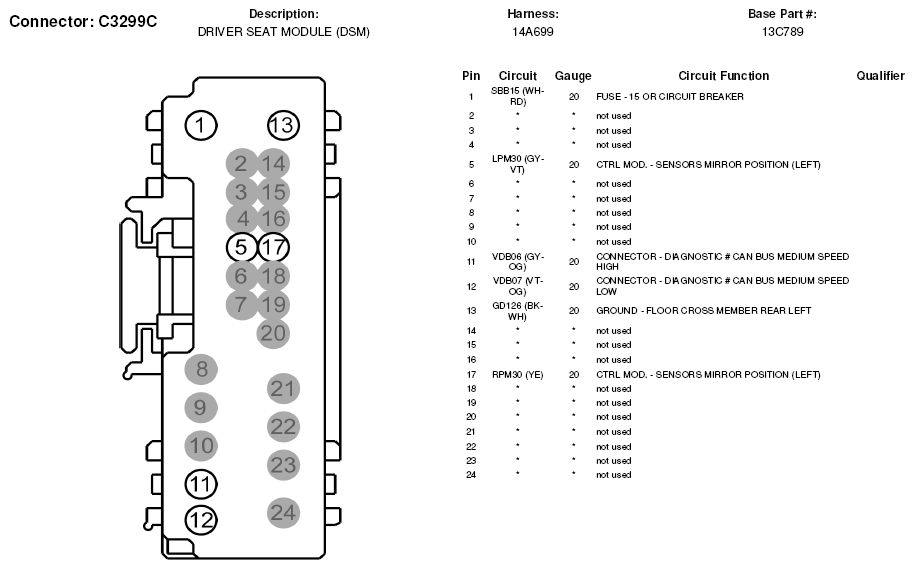

Fig 3: Driver Seat Module Connector End View (C3299C)
G05602709
Fig 4: Driver Seat Module Connector End View (C3299D)
G05602710
