Right Rear Window Control Switch Connector

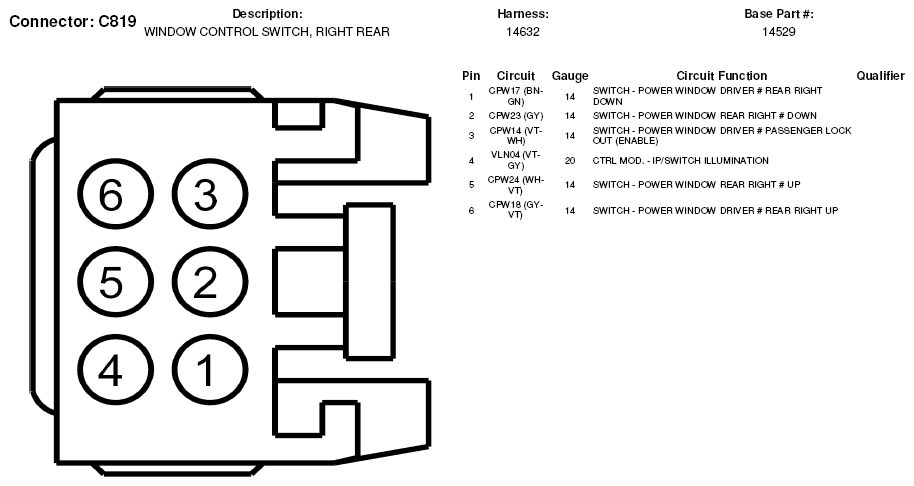

Fig 1: Right Rear Window Control Switch Connector End View (C819)

G05602565
