Passenger Side Window Control Switch Connector

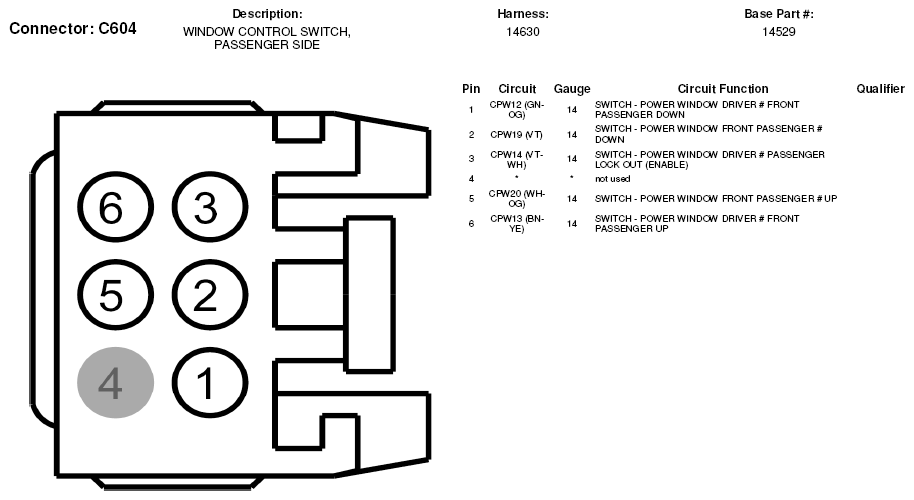

Fig 1: Passenger Side Window Control Switch Connector End View (C604)
G05602545

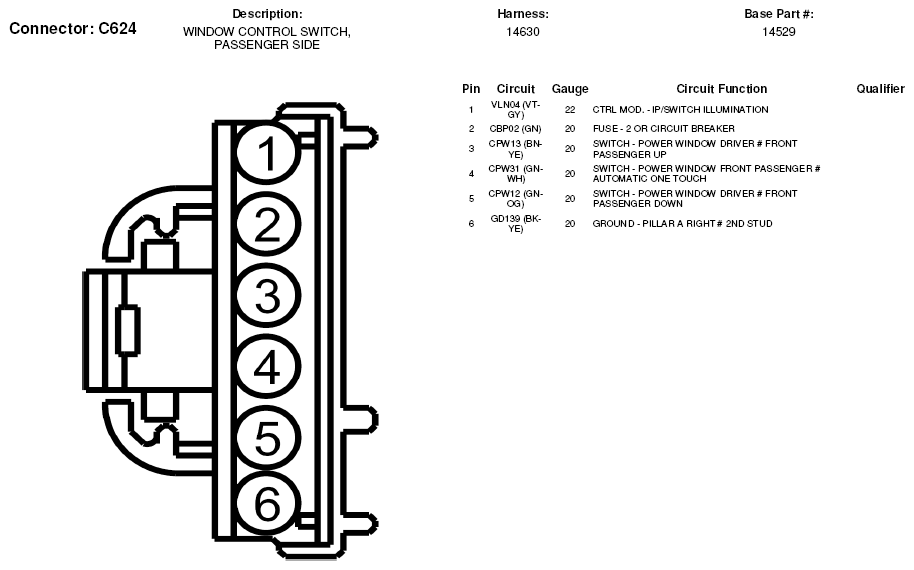

Fig 2: Passenger Side Window Control Switch Connector End View (C624)
G05602553
