Driver Door Module Connectors
Driver Door Module Connectors

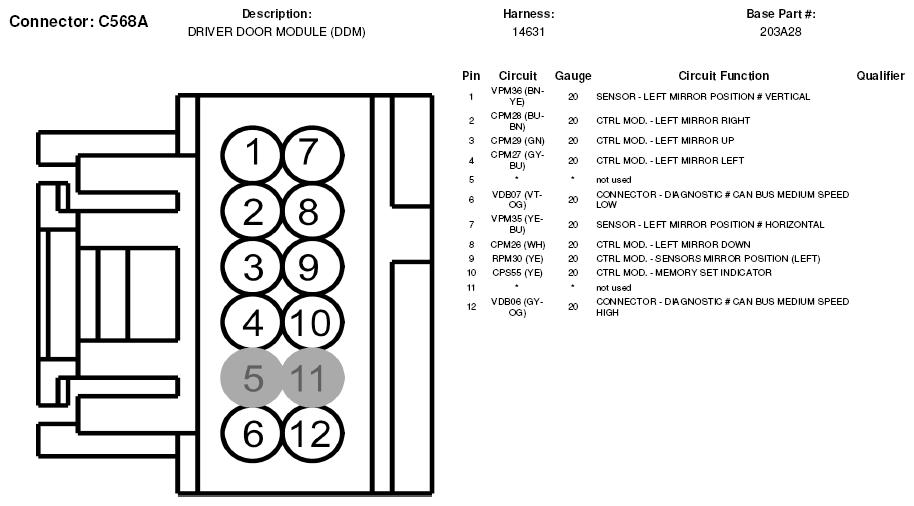

Fig 1: Driver Door Module Connector End View (C568A)

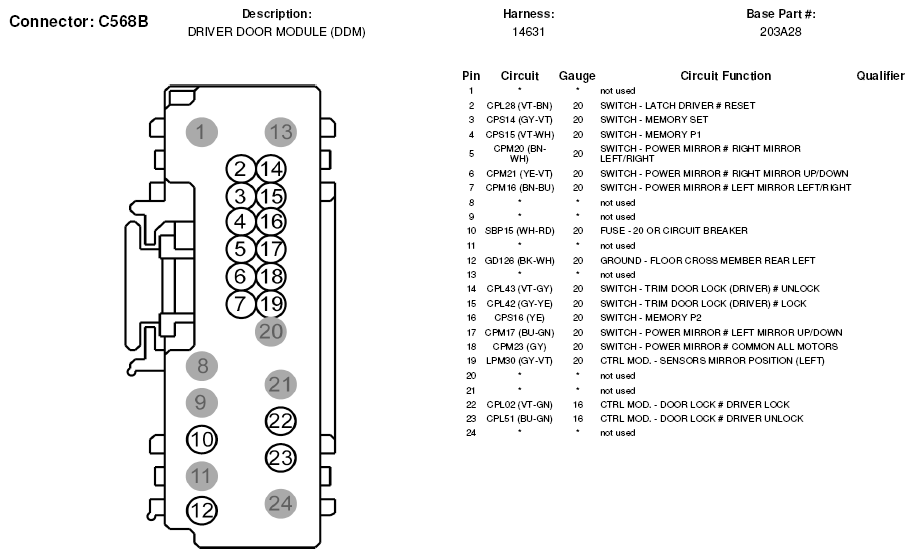

Fig 2: Driver Door Module Connector End View (C568B)
