Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00458909

Courtesy of FORD MOTOR CO.

Fig 2: Engine Compartment

G00458910

Courtesy of FORD MOTOR CO.

Fig 3: Engine Assembly

G00458911

Courtesy of FORD MOTOR CO.

Fig 4: Engine Assembly

G00458912

Courtesy of FORD MOTOR CO.

Fig 5: Automatic Transmission Assembly

G00458913

Courtesy of FORD MOTOR CO.

Fig 6: Manual Transmission Assembly

G00458914

Courtesy of FORD MOTOR CO.

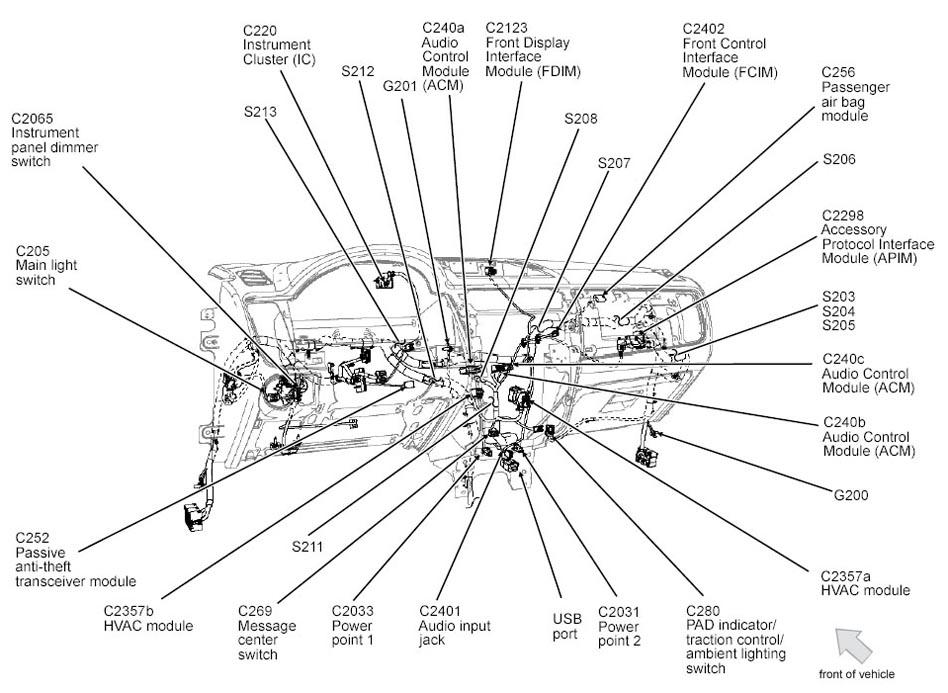

Fig 7: Dash

G00458915

Courtesy of FORD MOTOR CO.

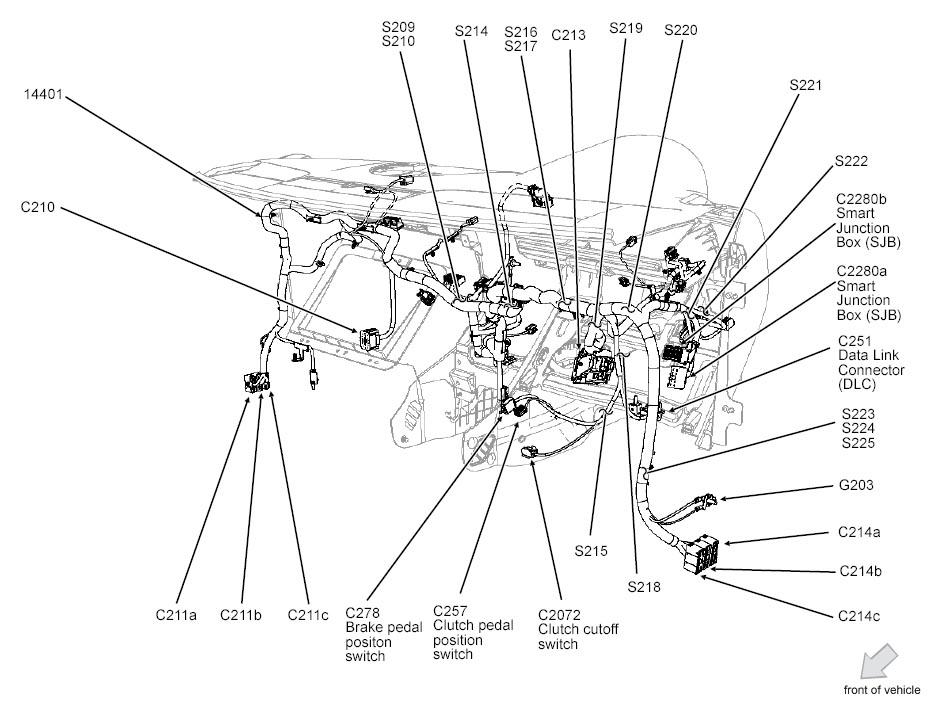

Fig 8: Rear Of Dash

G00458916

Courtesy of FORD MOTOR CO.

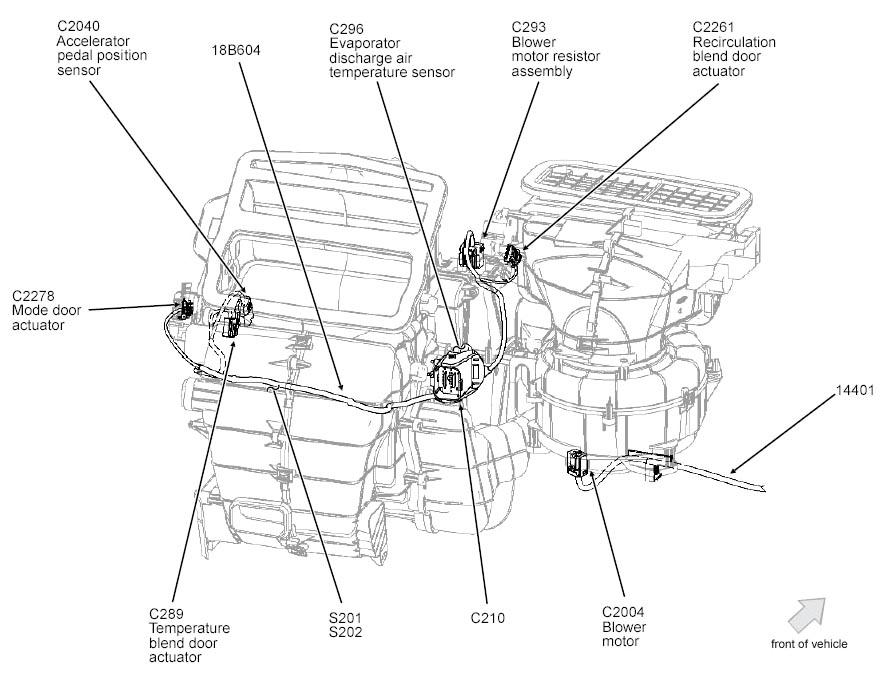

Fig 9: HVAC Assembly

G00458917

Courtesy of FORD MOTOR CO.

Fig 10: Center Console

G00458918

Courtesy of FORD MOTOR CO.

Fig 11: Driver's Door (Coupe)

G00458919

Courtesy of FORD MOTOR CO.

Fig 12: Driver's Door (Sedan)

G00458920

Courtesy of FORD MOTOR CO.

Fig 13: Passenger's Door (Coupe)

G00458921

Courtesy of FORD MOTOR CO.

Fig 14: Front Passenger's Door (Sedan)

G00458922

Courtesy of FORD MOTOR CO.

Fig 15: Right Rear Door

G00458923

Courtesy of FORD MOTOR CO.

Fig 16: Driver's Seat Assembly

G00458924

Courtesy of FORD MOTOR CO.

Fig 17: Front Passenger's Seat

G00458925

Courtesy of FORD MOTOR CO.

Fig 18: Right Side Of Chassis

G00458926

Courtesy of FORD MOTOR CO.

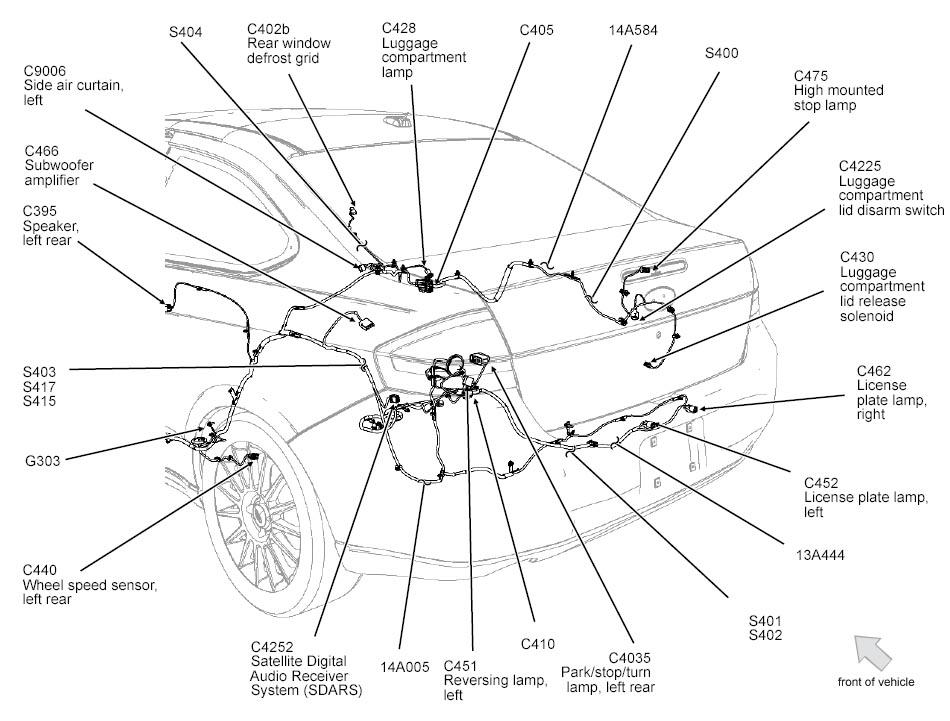

Fig 19: Rear Of Chassis

G00458927

Courtesy of FORD MOTOR CO.

Fig 20: Right Rear Of Chassis

G00458928

Courtesy of FORD MOTOR CO.

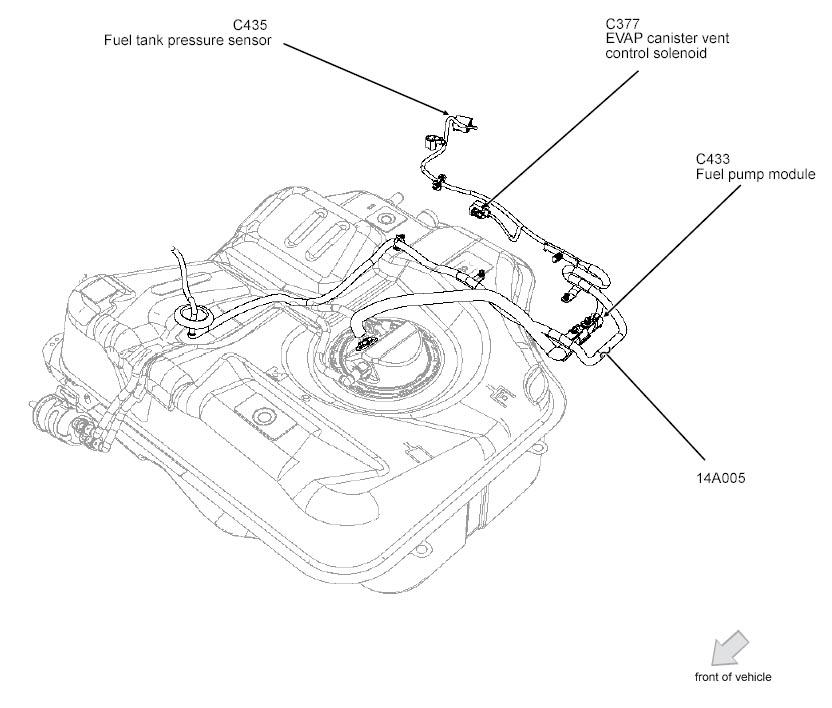

Fig 21: Fuel Tank Assembly

G00458929

Courtesy of FORD MOTOR CO.

Fig 22: Steering Column Assembly

G00458930

Courtesy of FORD MOTOR CO.

Fig 23: Battery Junction Box

G05604945

Courtesy of FORD MOTOR CO.

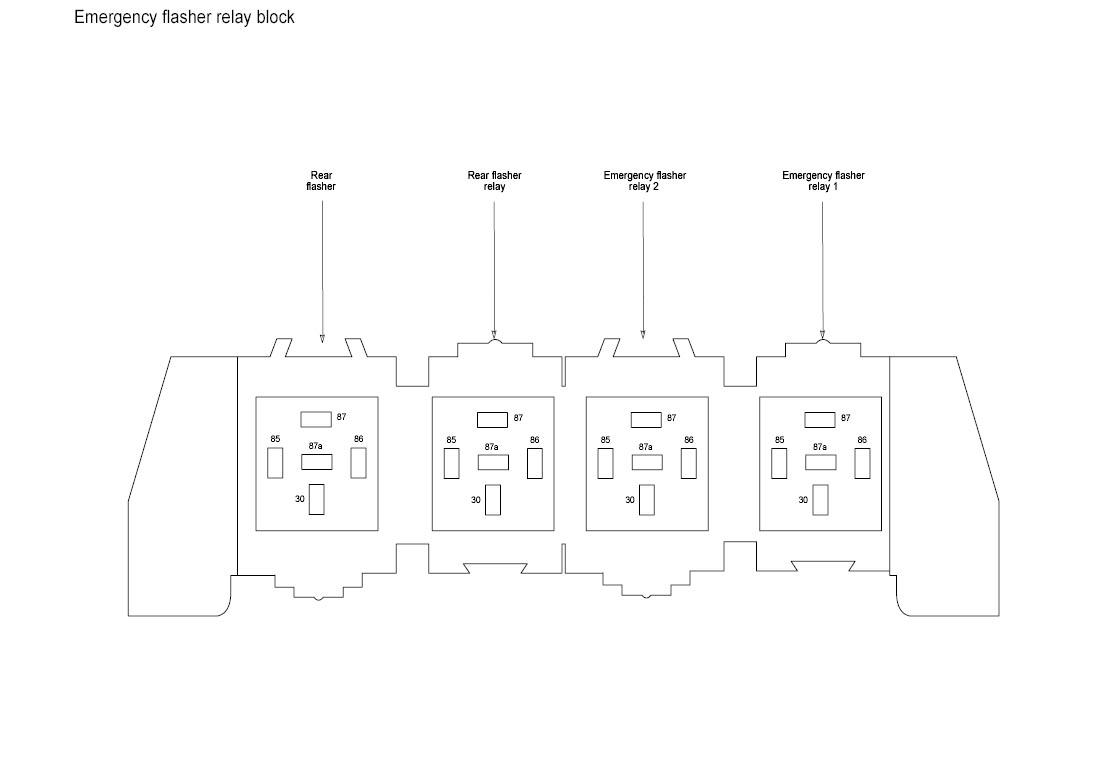

Fig 24: Emergency Flasher Relay Block

G00458932

Courtesy of FORD MOTOR CO.
