Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

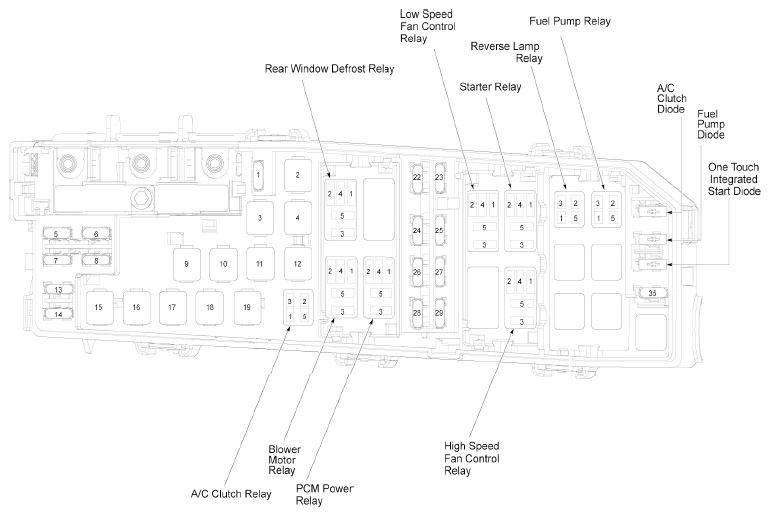

| A/C Compressor Clutch Diode | In battery junction box. See Figure. |

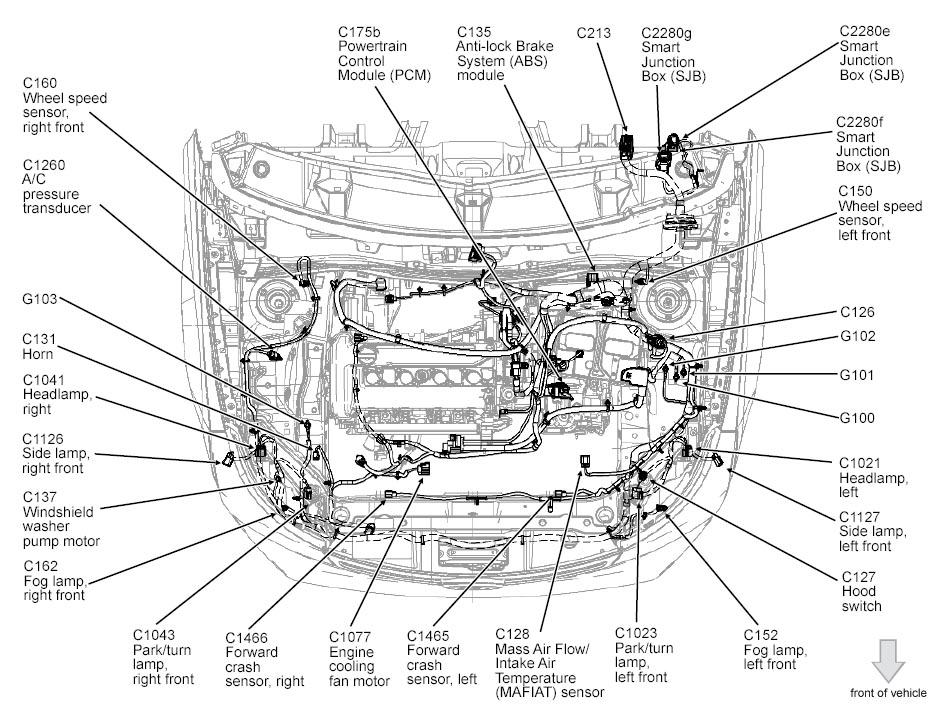

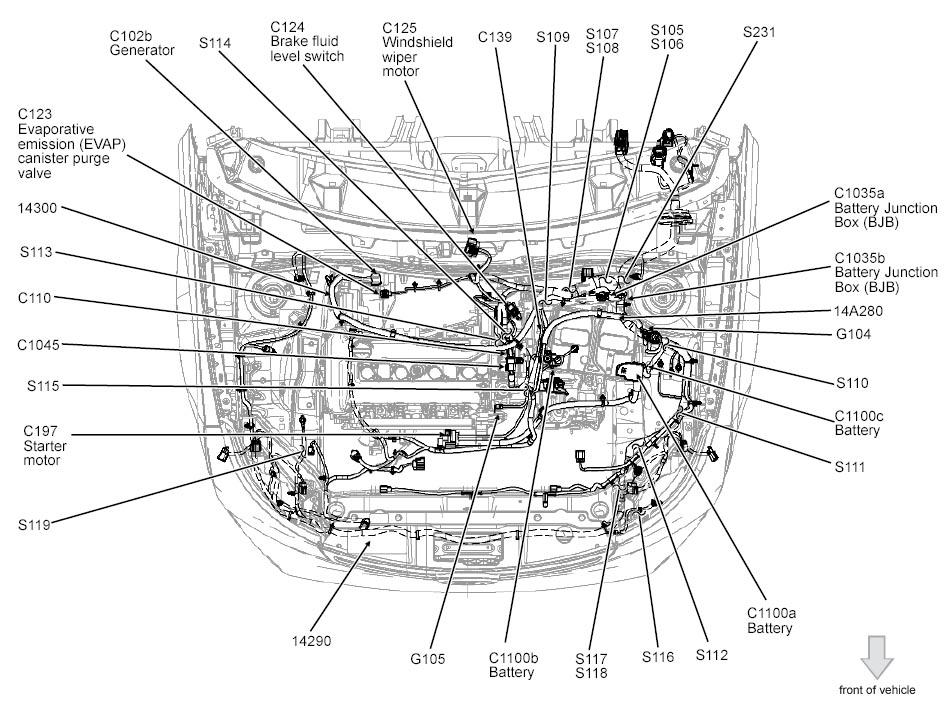

| Battery Junction Box (BJB) | Left rear corner of engine compartment. See Figure. |
| PCM Power Diode | In battery junction box. See Figure. |
| Smart Junction Box (SJB) | Behind left side of dash. See Figure. |
