Intake Manifold: Notes

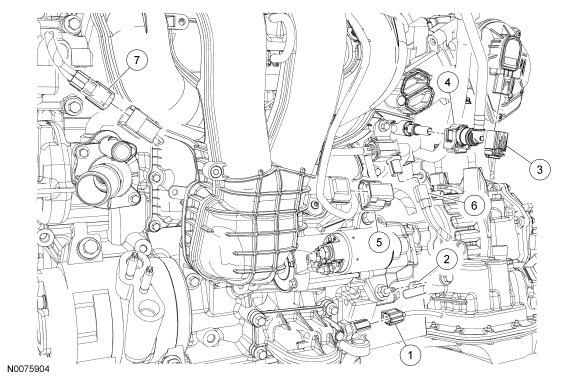

Fig 1: Intake Manifold Components (View 1 of 3)

GF0043071

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Engine Oil Pressure (EOP) switch electrical connector (part of 12C508)
2	-	Wire harness retainer (part of 12C508)
3	14A464	Electronic throttle control electrical connector (part of 12C508)
4	9D289	Fuel vapor return hose
5	14A464	Manifold Absolute Pressure (MAP) sensor electrical connector (part of 12C508)
6	14A464	Swirl control valve solenoid electrical connector (part of 12C508) (if equipped)
7	14A624	Knock Sensor (KS) electrical connector (part of 12C508)

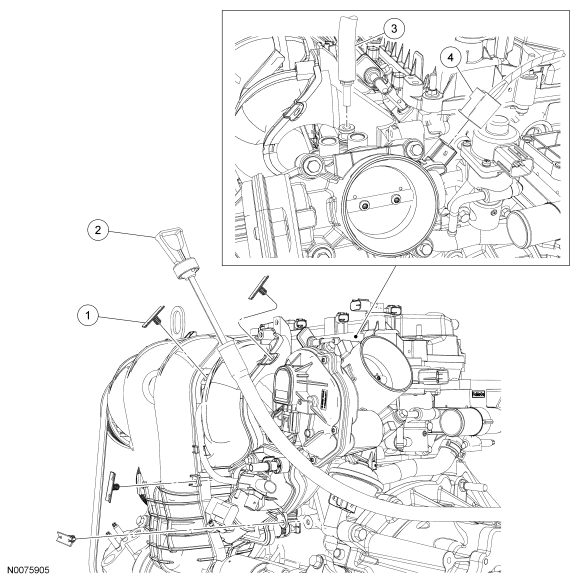

Fig 2: Intake Manifold Components (View 2 of 3)

GF0043072

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	13A506	Wire harness pin-type retainer (4 required) (part of 12C508)
2	7A020	Transaxle fluid indicator
3	19D848	Power brake booster vacuum tube
4	14A464	Swirl control valve sensor electrical connector (part of 12C508) (if equipped)

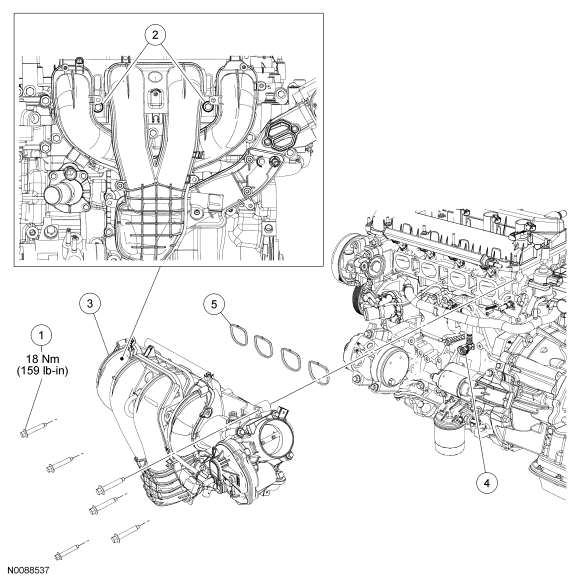

Fig 3: Intake Manifold Components With Torque Specification (View 3 of 3)

GF0043073

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500311	Intake manifold bolt (6 required)
2	W500312	Intake manifold bolts
3	9424	Intake manifold
4	6758	PCV hose
5	9439	Intake manifold gasket
