Engine Mount: Notes

Special Tools

Illustration Tool Name Tool Number
GF0000161Courtesy of FORD MOTOR CO.
 Engine Support Bar 303-F072

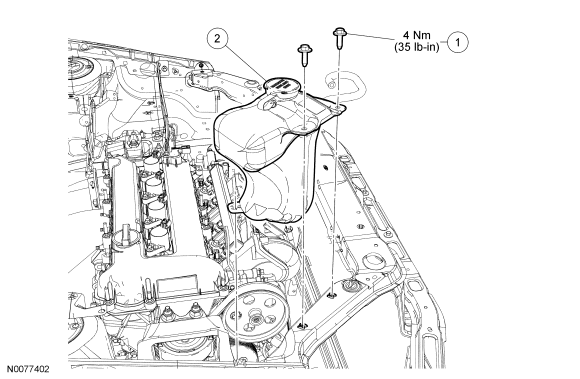

Fig 1: Coolant Expansion Tank Components With Torque Specification
GF0043088Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W701107 Coolant expansion tank bolt (2 required)
2 8C045 Coolant expansion tank

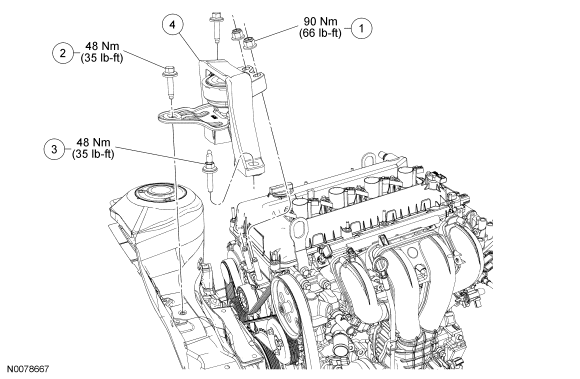

Fig 2: Engine Mount Components With Torque Specifications
GF0043089Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520214 Engine mount nut (2 required)
2 W710332 Engine mount bolt (2 required)
3 W712325 Engine mount stud bolt
4 6F012 Engine mount
