Seat - Exploded View, Front

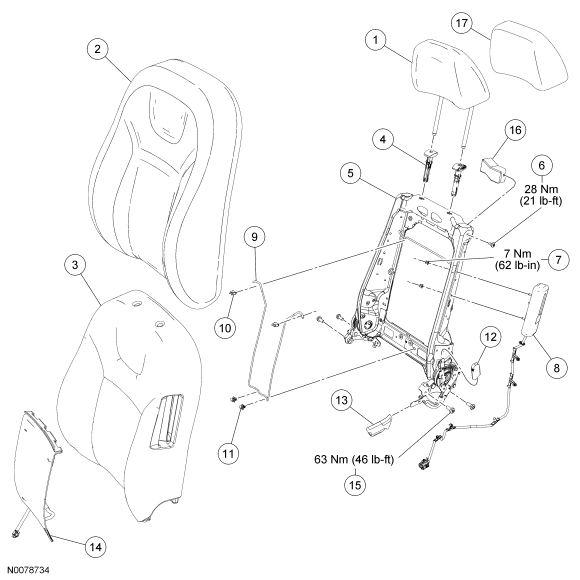

| Item | Part Number | Description |
|---|---|---|
| 1 | 610A60 | Head restraint |
| 2 | 64417 | Backrest trim cover |
| 3 | 64811 | Backrest foam pad |
| 4 | 610A16/ 610A18 | Head restraint guide (2 required) |
| 5 | 61019 | Backrest frame |
| 6 | W504760 | Backrest weight bolt (driver 2-way seat only) |
| 7 | W520201 | Side air bag module nut (2 required) |
| 8 | 611D11 | Side air bag module |
| 9 | 622A02 | Backrest support |
| 10 | W790107 | Backrest support upper retainer (2 required) |
| 11 | - | Backrest support lower retainer (part of 622A02) (2 required) |
| 12 | 62763 | Backrest latch release lever cover |
| 13 | 61199 | Backrest recliner lever cover |
| 14 | 14D696 | Backrest heater mat |
| 15 | W702016 | Backrest-to-seat track bolt (4 required) |
| 16 | 610B62 | Backrest weight (driver 2-way seat only) |
| 17 | 610A62 | Head restraint trim cover |

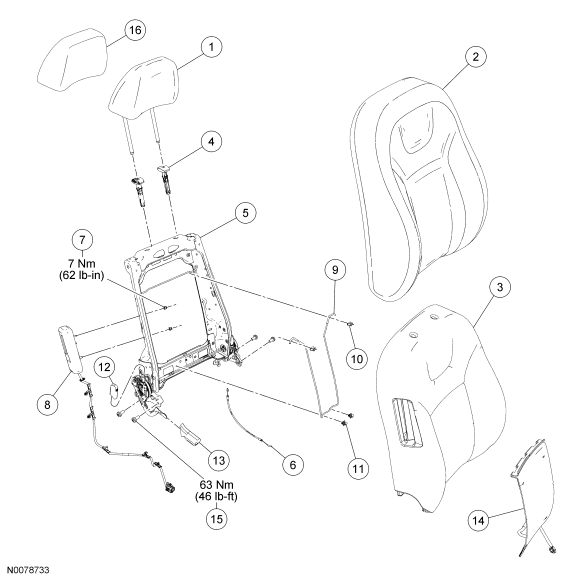

| Item | Part Number | Description |
|---|---|---|
| 1 | 610A60 | Head restraint |
| 2 | 64416 | Backrest trim cover |
| 3 | 64810 | Backrest foam pad |
| 4 | 610A16/ 610A18 | Head restraint guide (2 required) |
| 5 | 61018 | Backrest frame |
| 6 | - | Seat track release cable |
| 7 | W520201 | Side air bag module nut (2 required) |
| 8 | 611D11 | Side air bag module |
| 9 | 622A02 | Backrest support |
| 10 | W790107 | Backrest support upper retainer (2 required) |
| 11 | - | Backrest support lower retainer (part of 622A02) (2 required) |
| 12 | 62762 | Backrest latch release lever cover |
| 13 | 61198 | Backrest recliner lever cover |
| 14 | 14D696 | Backrest heater mat |
| 15 | W702016 | Backrest-to-seat track bolt (4 required) |
| 16 | 610A62 | Head restraint trim cover |
NOTE:
LH seat with 4-way seat track shown, 2-way similar. For RH seat cushion occupant classification sensor (OCS) system components, refer to No Content
.

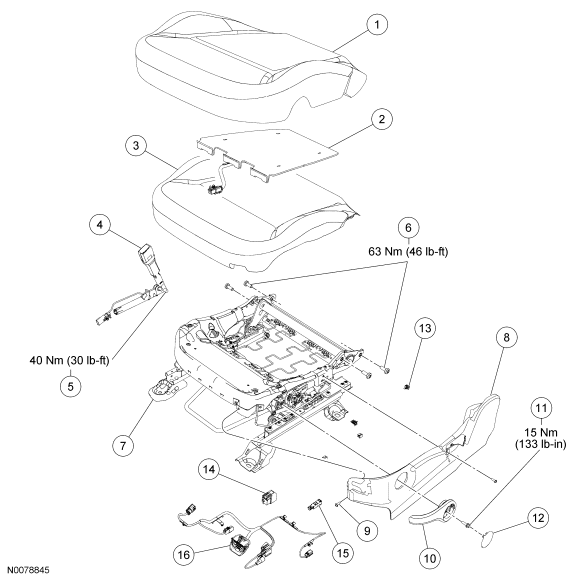

| Item | Part Number | Description |
|---|---|---|
| 1 | 62901 | Cushion trim cover |
| 2 | 14D698 | Cushion heater mat |
| 3 | 632A23 | Cushion foam pad |
| 4 | 61203 | Safety belt buckle and pretensioner |
| 5 | - | Safety belt buckle and pretensioner bolt (part of 61203) |
| 6 | W702016 | Seat backrest-to-seat track bolts (4 required) |
| 7 | 61705 | Seat track |
| 8 | 62187 | Cushion side shield |
| 9 | W502661 | Cushion side shield screw (2 required) |
| 10 | 61753 | Seat height adjust handle |
| 11 | W505255 | Seat height adjust handle screw |
| 12 | 600D15 | Seat height adjust handle screw cover |
| 13 | W707291 | Cushion side shield retainer clip (4 required) |
| 14 | 14N089 | Heated seat relay |
| 15 | 14B416 | Seat track position sensor (driver seat only) |
| 16 | 14A699 | Seat wiring harness |
- For additional information, refer to the procedures in this article.
