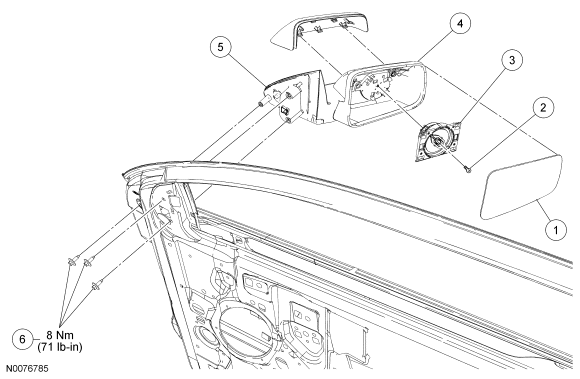

Exterior Mirrors - Exploded View
NOTE:
RH side shown, LH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17K707 | Exterior mirror glass |
| 2 | - | Exterior mirror motor screw (part of 17D696) |
| 3 | 17D696 | Exterior mirror motor |
| 4 | 17682 RH/ 17683 LH | Exterior mirror |
| 5 | 17D742 RH/ 17D743 LH | Exterior mirror cover |
| 6 | W503923 | Exterior mirror bolts (3 required) |
- For additional information, refer to the procedures in this article.
