Smart Junction Box (SJB): Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

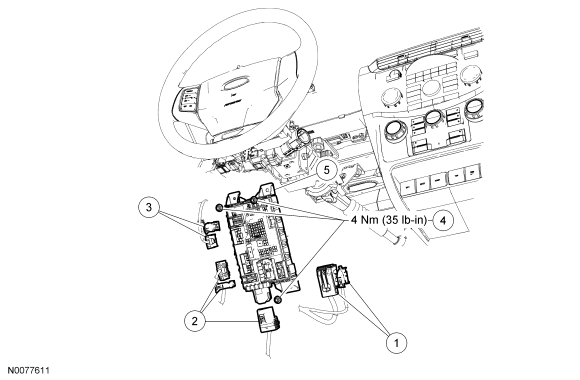

Fig 1: Smart Junction Box (SJB) Components With Torque Specification

GF0043668

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Electrical connectors (2 required) (part of 14A005)
2	-	Electrical connectors (3 required) (part of 14290)
3	-	Electrical connectors (2 required) (part of 14401)
4	W701152-S	Smart junction box (SJB) nuts (3 required)
5	15604	SJB
