Powertrain Control Module Connector

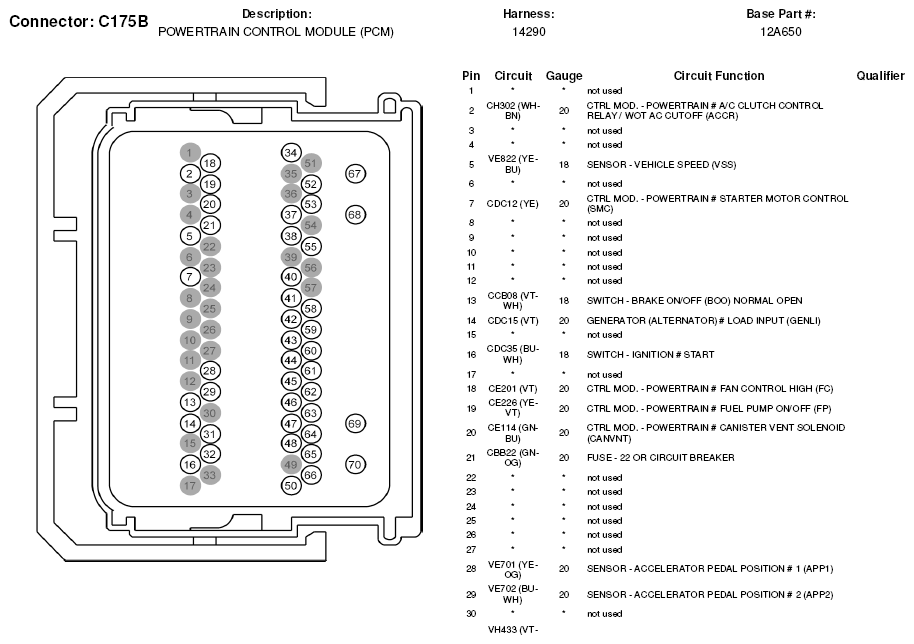

Fig 1: Powertrain Control Module (1 Of 2) Connector End View (C175B) (1 Of 2)
G05602185

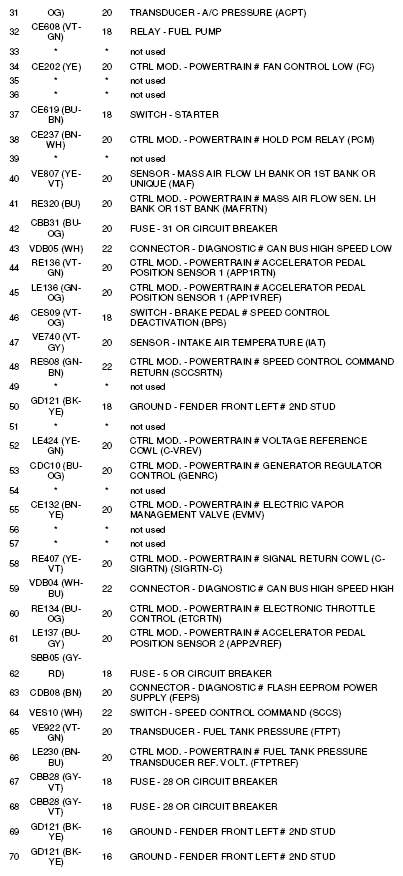

Fig 2: Powertrain Control Module (2 Of 2) Connector End View (C175B) (2 Of 2)
G05602186

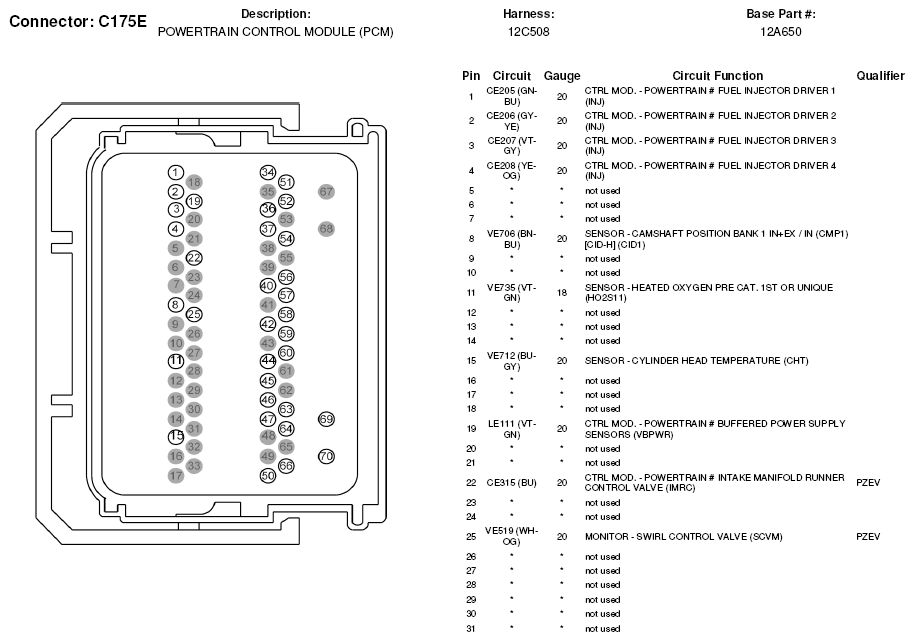

Fig 3: Powertrain Control Module (1 Of 2) Connector End View (C175E) (1 Of 2)
G05602187

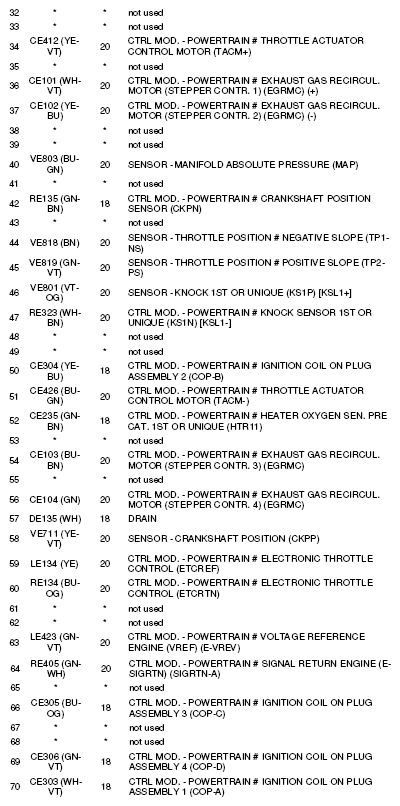

Fig 4: Powertrain Control Module (2 Of 2) Connector End View (C175E) (2 Of 2)
G05602188

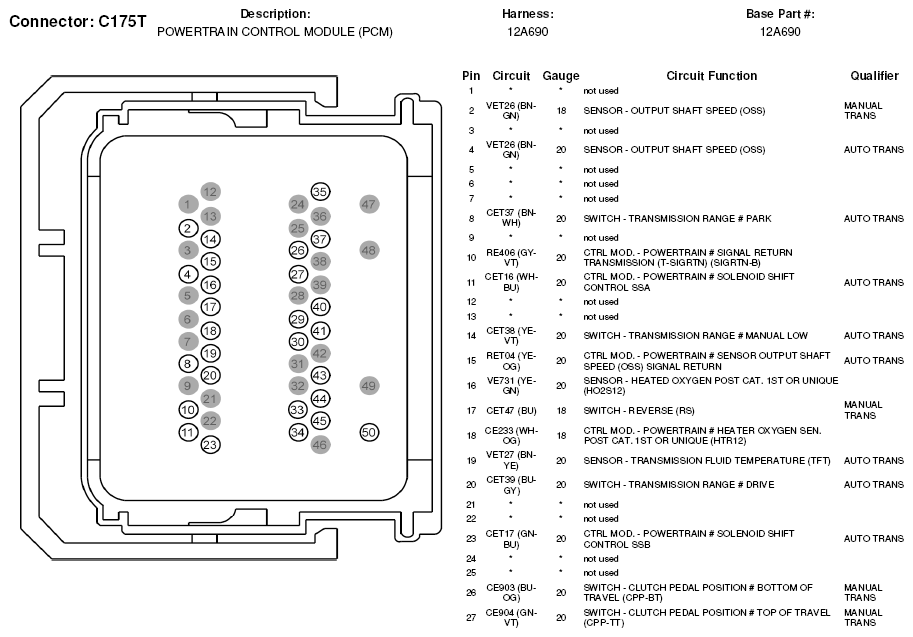

Fig 5: Powertrain Control Module (1 Of 2) Connector End View (C175T) (1 Of 2)
G05602189

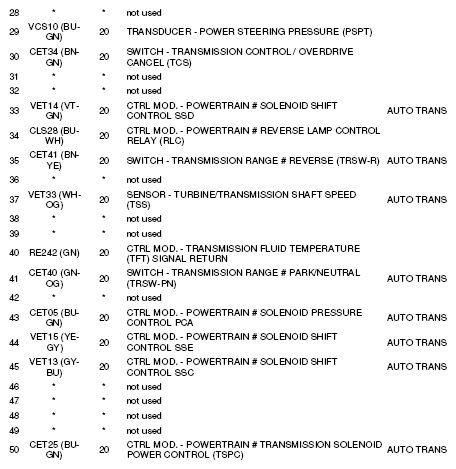

Fig 6: Powertrain Control Module (2 Of 2) Connector End View (C175T) (2 Of 2)
G05602190
