Home >> Ford >> 2008 >> Focus SES, 4D Sedan, Standard >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Front Display Interface Module Connector

Front Display Interface Module Connector

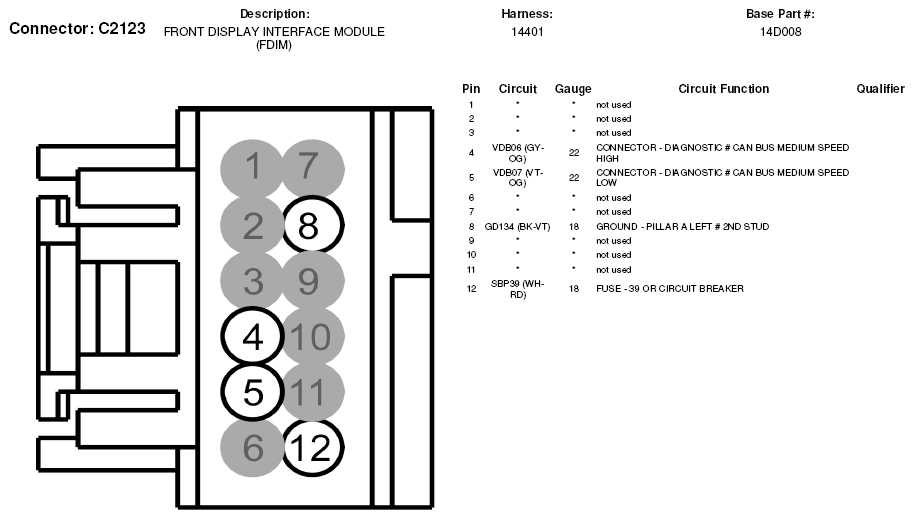

Fig 1: Front Display Interface Module Connector End View (C2123)

G05602321
