Cylinder Head: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Alignment Plate, Camshaft | 303-465 (T94P-6256-CH) | |
| Engine Support Bar | 303-F072 |
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A |
- |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Silicone Gasket Remover ZC-30 |
- |

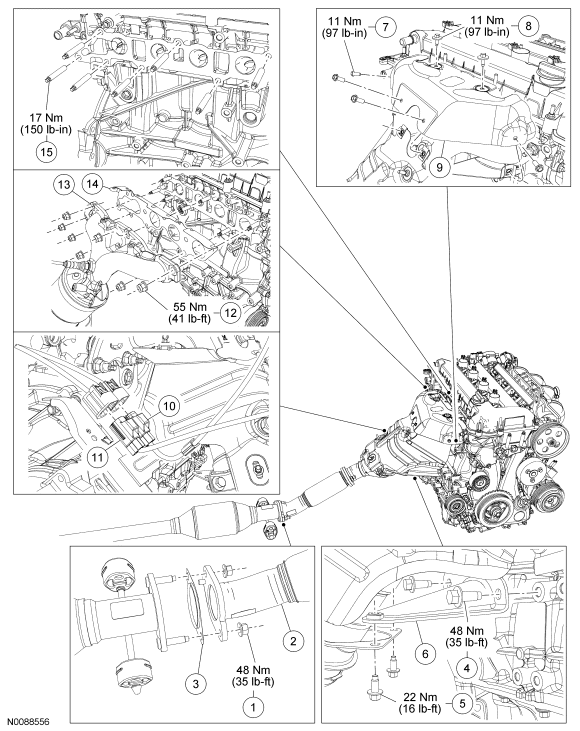

| Item | Part Number | Description |
|---|---|---|
| 1 | W705443 | Flexpipe-to-muffler and tailpipe assembly nut (2 required) |
| 2 | 5G232 | Flexpipe |
| 3 | 9451 | Flexpipe-to-muffler and tailpipe assembly gasket |
| 4 | W710512 | Catalytic converter-to-engine support bracket bolt (2 required) |
| 5 | - | Catalytic converter support bracket bolt (2 required) (part of 5K222) |
| 6 | 5K222 | Catalytic converter support bracket |
| 7 | - | Catalytic converter heat shield bolt (4 required) (part of 5K282) |
| 8 | W503922 | Catalytic converter heat shield bolt (2 required) |
| 9 | 5K282 | Catalytic converter heat shield |
| 10 | 14A624 | Heated Oxygen Sensor (HO2S) electrical connector (part of 12A690) |
| 11 | 14A624 | Catalyst Monitor Sensor (CMS) electrical connector (part of 12A690) |
| 12 | W703933 | Catalytic converter nut (7 required) |
| 13 | 5G232 | Catalytic converter |
| 14 | 9448 | Catalytic converter gasket |
| 15 | W704474 | Catalytic converter-to-cylinder head stud (7 required) |

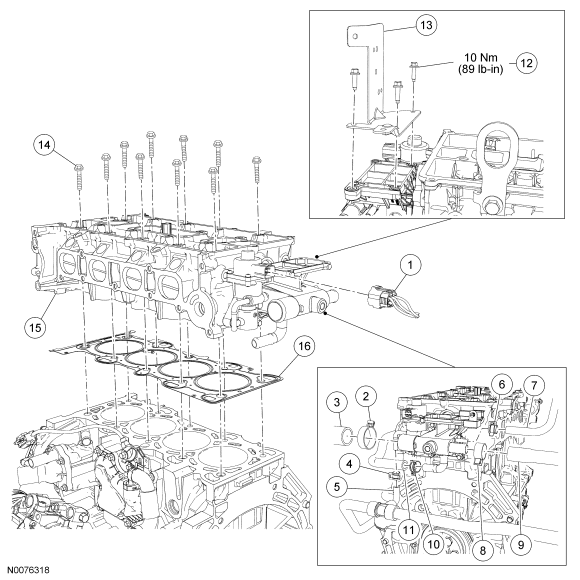

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | EGR valve electrical connector (part of 12B637) |
| 2 | 8287 | Upper radiator hose clamp |
| 3 | 8260 | Upper radiator hose |
| 4 | W52592 | EGR coolant tube clamp |
| 5 | 18K580 | EGR coolant hose (part of heater hose) |
| 6 | - | Engine coolant vent hose clamp (part of 8W005) |
| 7 | 8W005 | Engine coolant vent hose |
| 8 | - | Heater hose clamp (part of 18K580) |
| 9 | 18K580 | Heater hose |
| 10 | W525958 | Bypass hose clamp |
| 11 | 8548 | Bypass hose |
| 12 | W500204 | Wiring harness bracket bolt (2 required) |
| 13 | 14A301 | Wiring harness bracket |
| 14 | 6065 | Cylinder head bolt (10 required) |
| 15 | 6050 | Cylinder head |
| 16 | 6051 | Cylinder head gasket |
