Master window control switch - Sedan: Schematic

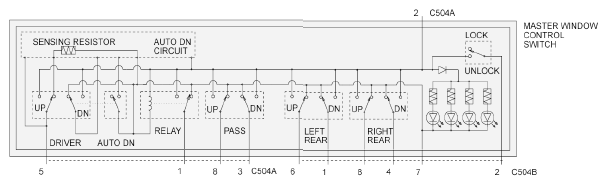

Fig 1: Master Window Control Switch - Sedan - Schematic

G05604929

Courtesy of FORD MOTOR CO.
