Fuel Level Sender: Notes

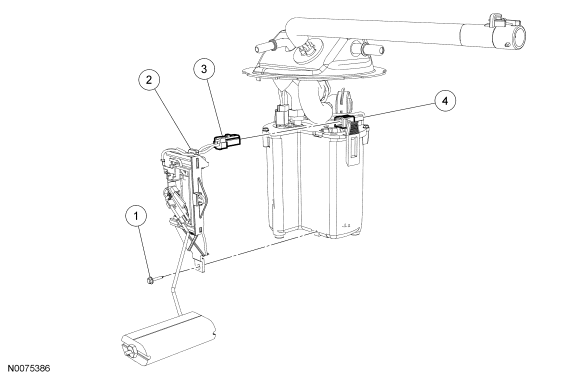

Fig 1: Fuel Level Sender Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	391567	Fuel level sender screw
2	9A299	Fuel level sender
3	-	Fuel level sender electrical connector (part of 9A299)
4	9H307	Fuel pump (FP) module
