Receiver Drier: Notes

Material

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

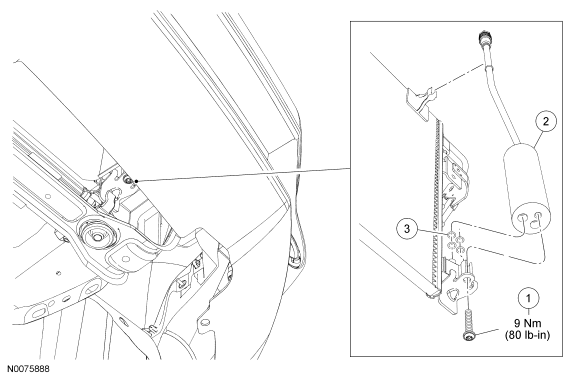

Fig 1: Receiver Drier Components With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Receiver/drier bolt (part of 19C836 kit)
2	19C836	Receiver/drier
3	-	O-ring seal (4 required) (part of 19C836 kit)
