Compressor to Condenser Discharge Line: Notes

Material

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

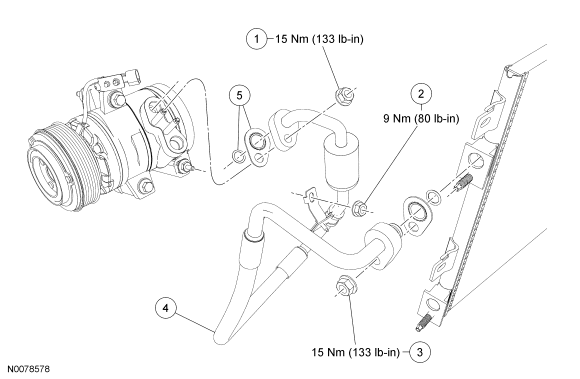

Fig 1: Compressor To Condenser Discharge Line Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520413	A/C compressor discharge fitting nut
2	W520101	Compressor-to-condenser discharge line bracket nut
3	W520413	A/C condenser inlet fitting nut
4	19972	Compressor-to-condenser discharge line
5	19B596	O-ring seal and gasket seal kit (2 required)
