HVAC Module Connector

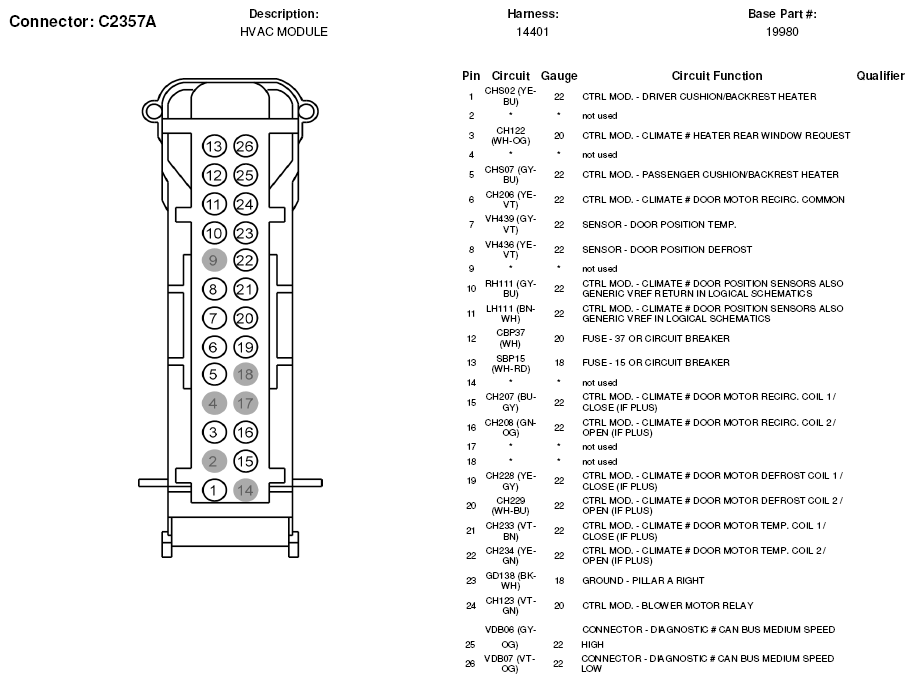

Fig 1: HVAC Module Connector End View (C2357A)

G05602334

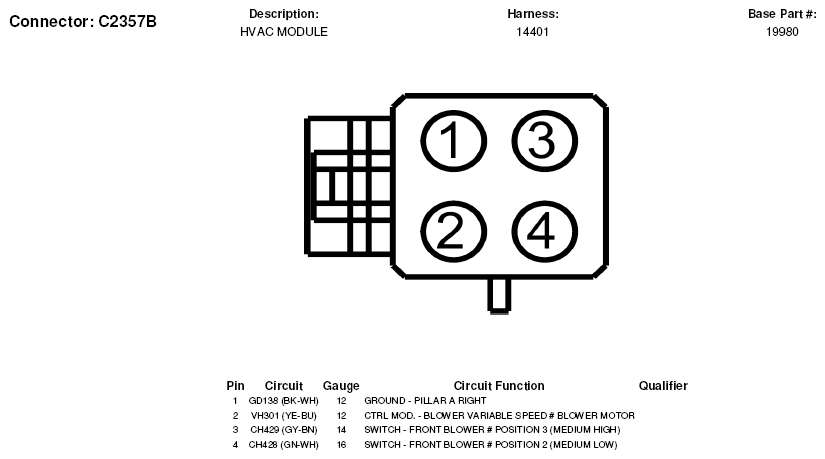

Fig 2: HVAC Module Connector End View (C2357B)

G05602335
