Subwoofer Amplifier Connector

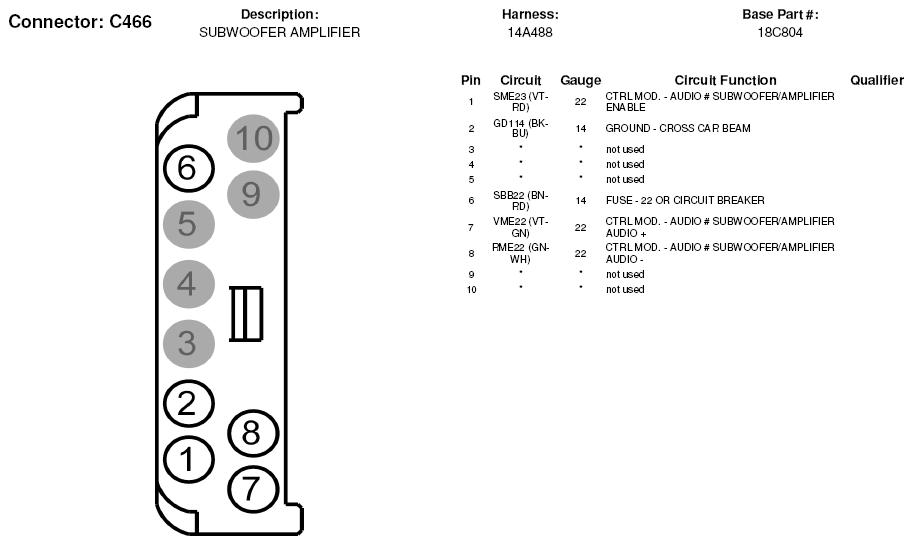

Fig 1: Subwoofer Amplifier Connector End View (C466)

G05600751

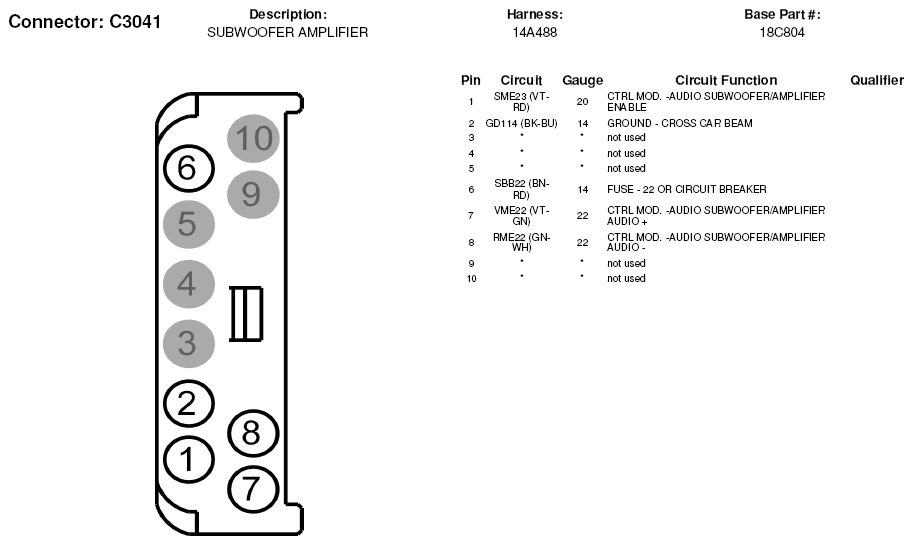

Fig 2: Subwoofer Amplifier Connector End View (C3041)

G05600888
