Right Front Side Lamp Connector
Right Front Side Lamp Connector

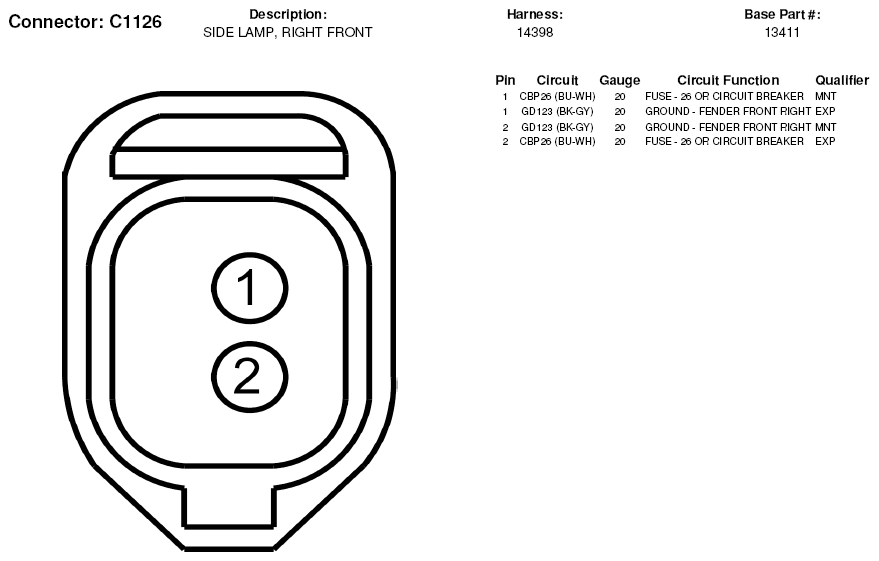

Fig 1: Right Front Side Lamp Connector End View (C1126)
