Passenger Side Window Adjust Switch Connector

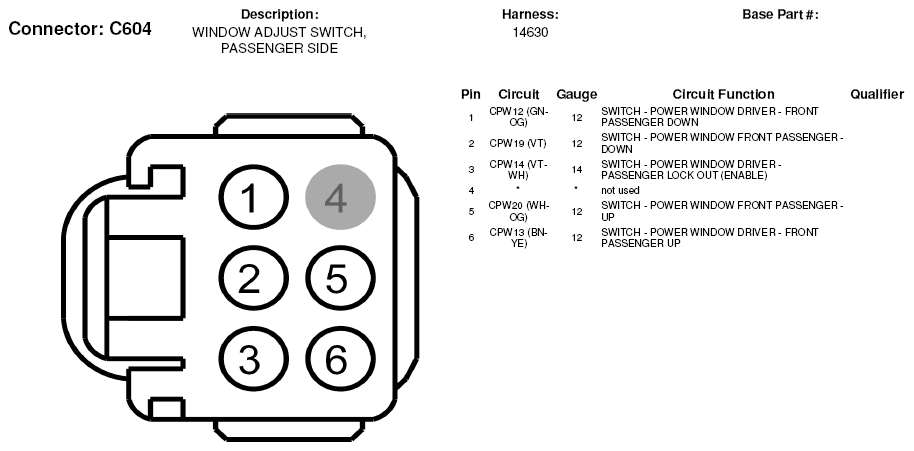

Fig 1: Passenger Side Window Adjust Switch Connector End View (C604)

G05600779
