Left Headlamp Connector

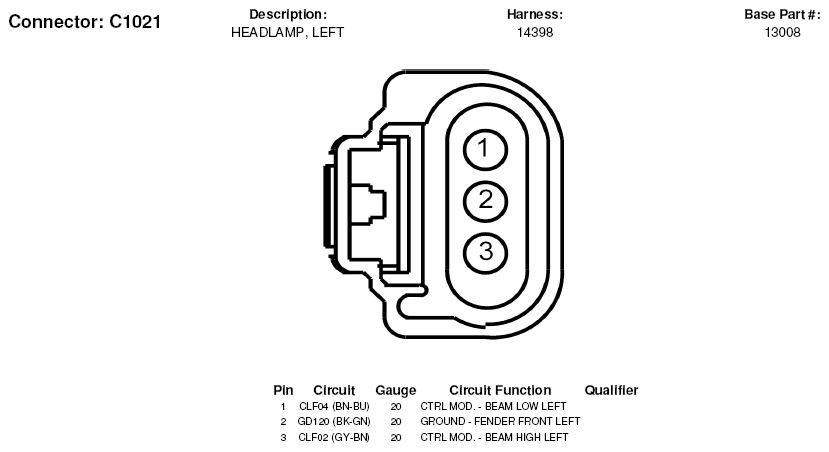

Fig 1: Left Headlamp Connector End View (C1021)

G05600814

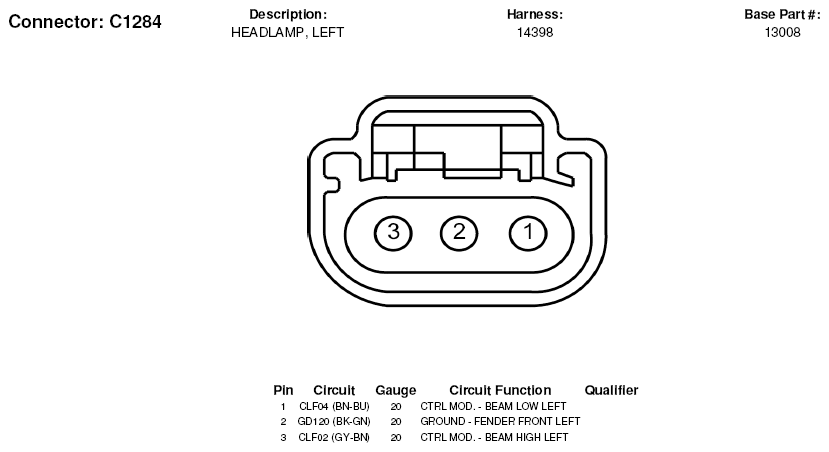

Fig 2: Left Headlamp Connector End View (C1284)

G05600839
