Heated Seat Switch/ Heated Windshield Switch Connector

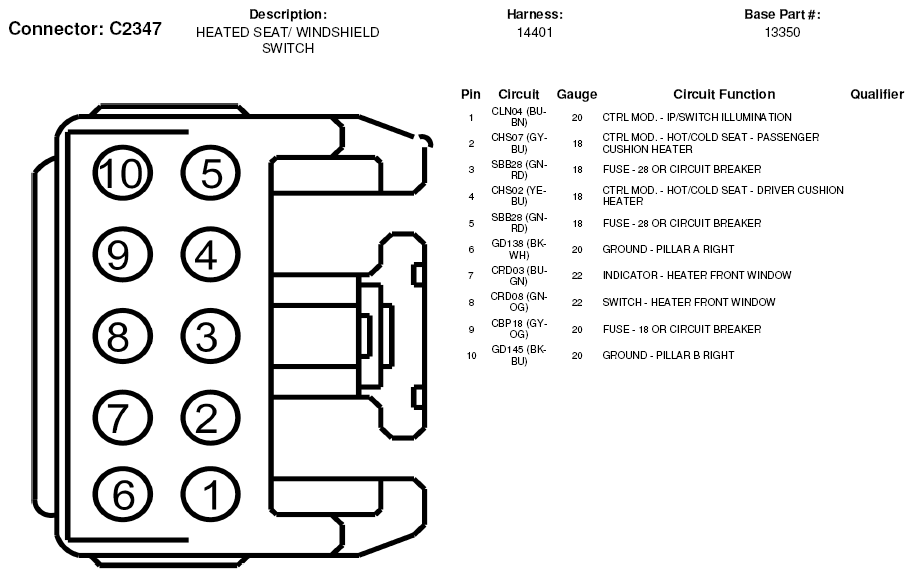

Fig 1: Heated Seat Switch/ Heated Windshield Switch Connector End View (C2347)

G05600879
