Auxiliary Climate Control Assembly: Notes

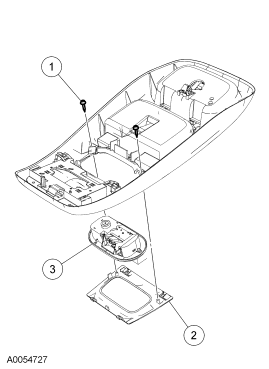

Fig 1: Exploded View Of Auxiliary Climate Control Assembly
GF0027943Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Screw (2 required)
2 78519D06 Bezel
3 19980 Auxiliary climate control assembly
