Smart Junction Box Connector

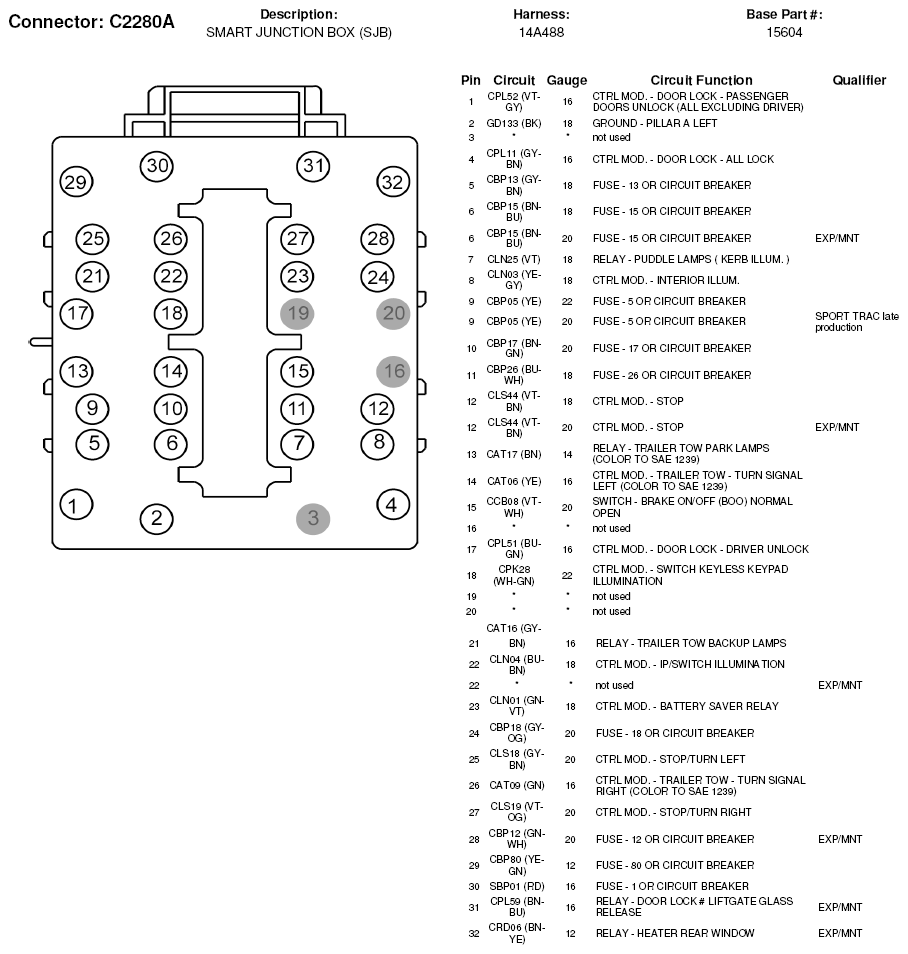

Fig 1: Smart Junction Box Connector End View (C2280A)
G05600871

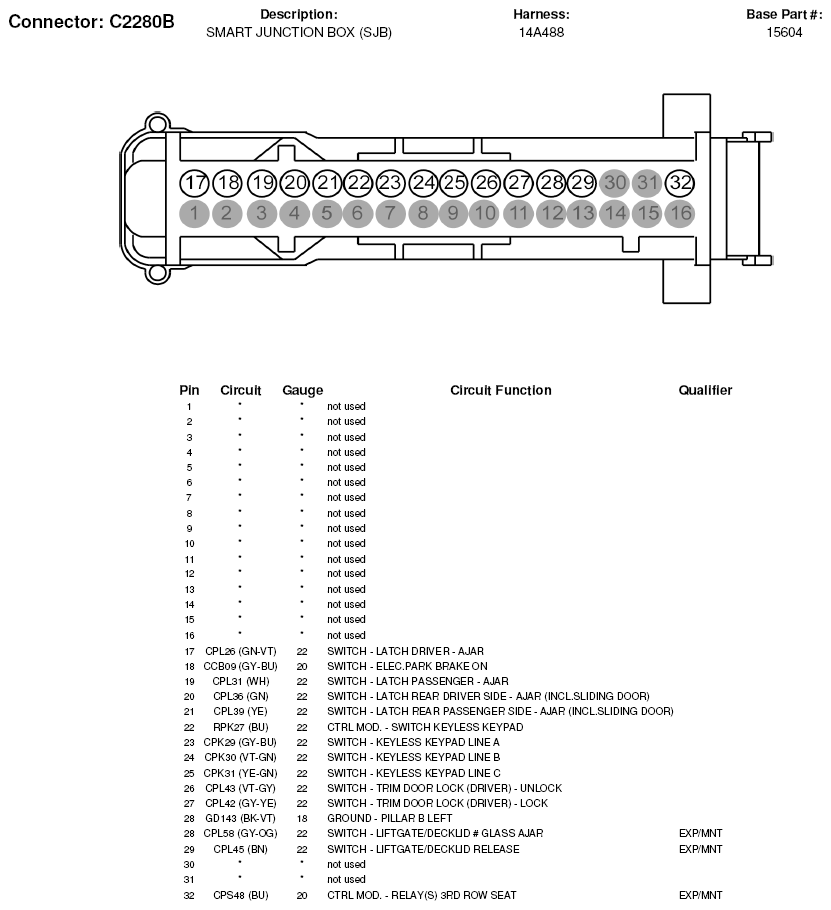

Fig 2: Smart Junction Box Connector End View (C2280B)
G05600872

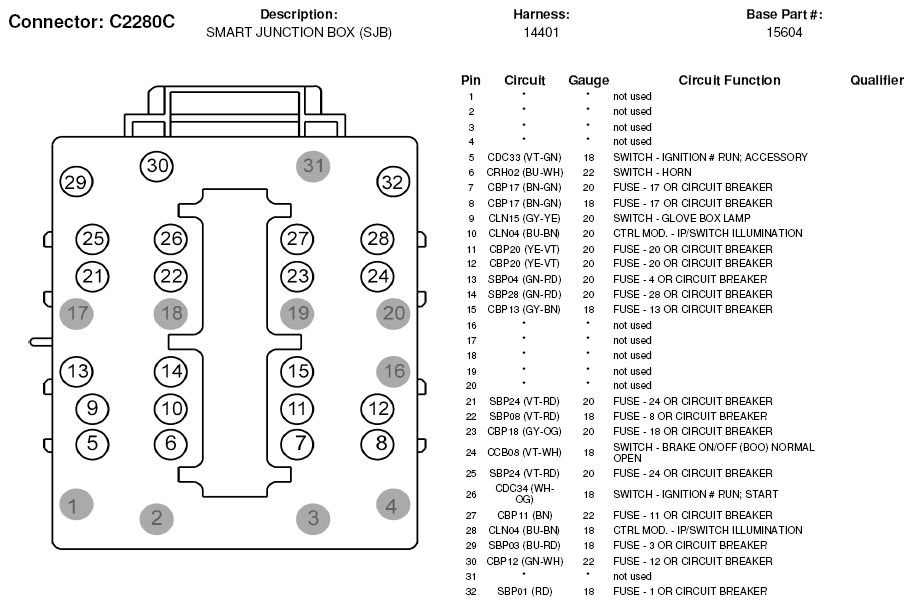

Fig 3: Smart Junction Box Connector End View (C2280C)
G05600873

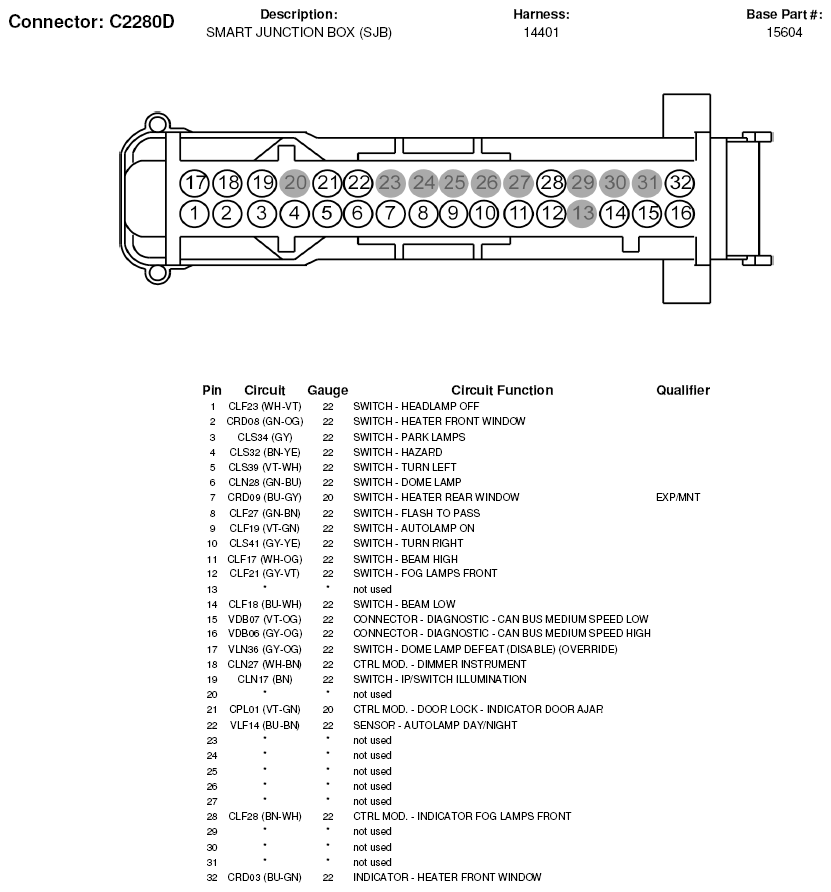

Fig 4: Smart Junction Box Connector End View (C2280D)
G05600874

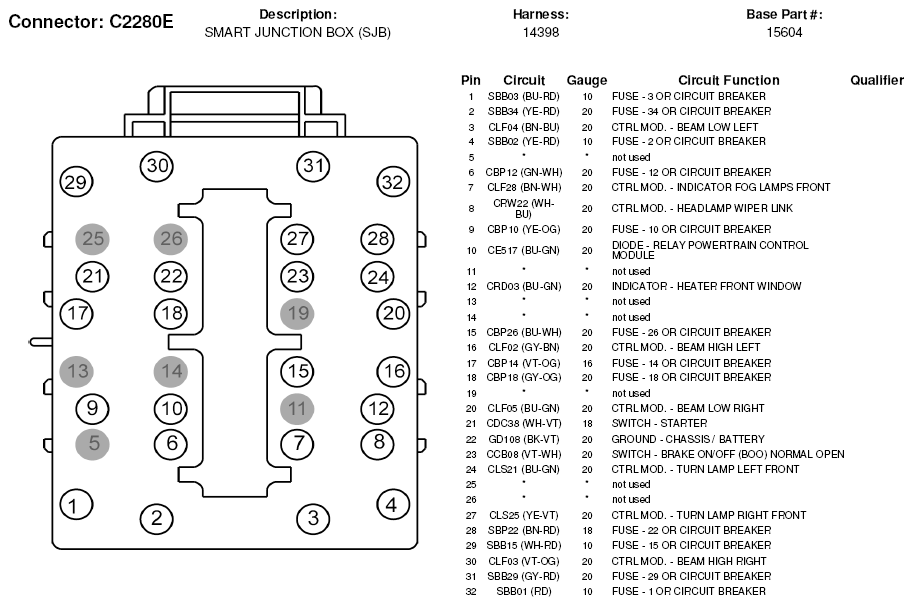

Fig 5: Smart Junction Box Connector End View (C2280E)
G05600875
