Front Auxiliary Climate Control Assembly Connector

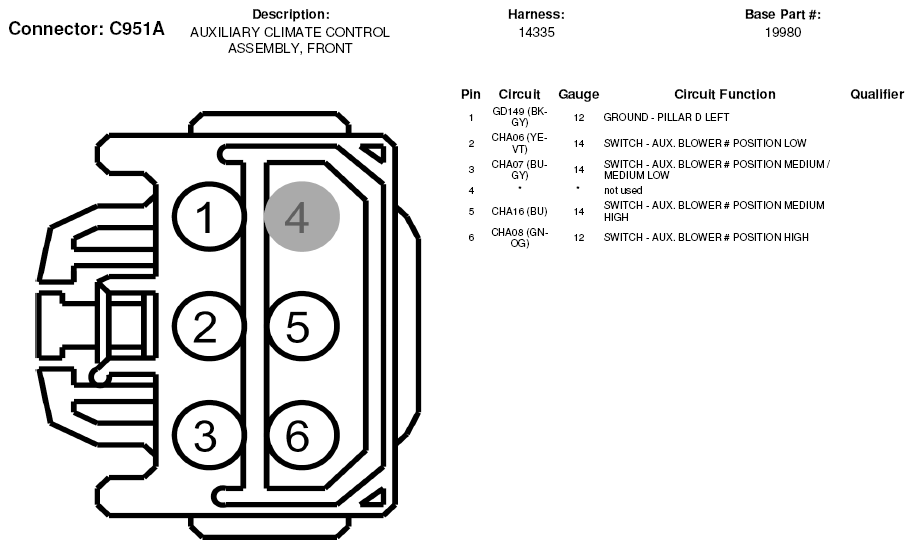

Fig 1: Front Auxiliary Climate Control Assembly Connector End View (C951A)

G05600810

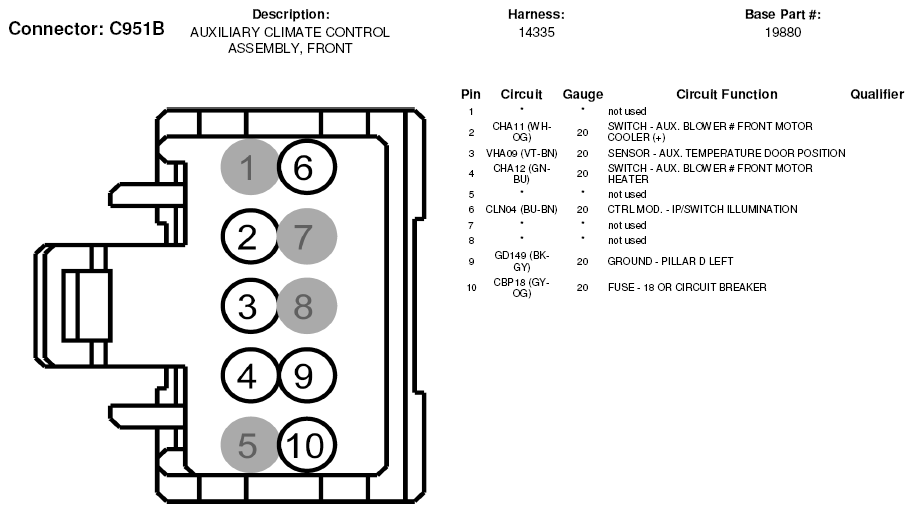

Fig 2: Front Auxiliary Climate Control Assembly Connector End View (C951B)

G05600811
