Ford
>>
2008
>>
Explorer 4.6 8, RWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector Views
>>
DATC HVAC Module Connector
DATC HVAC Module Connector

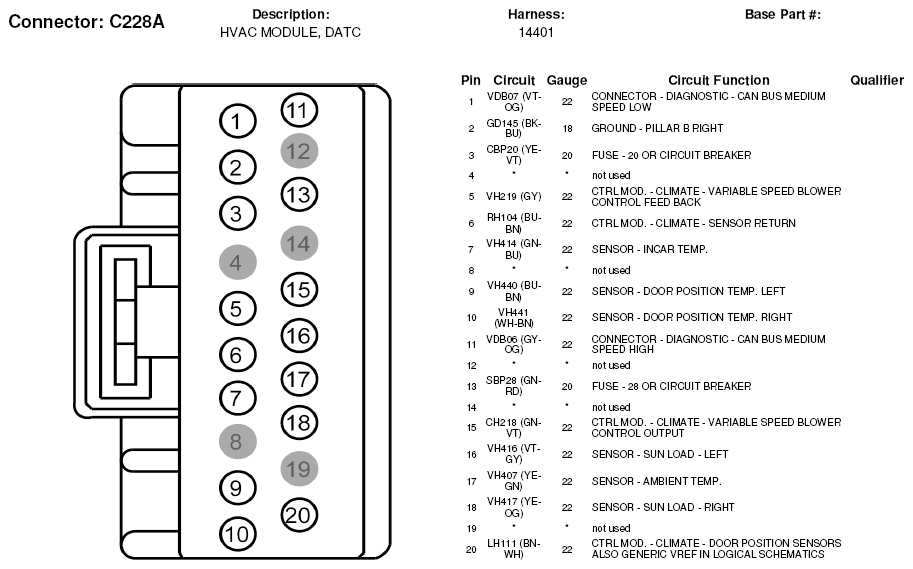

Fig 1: DATC HVAC Module Connector End View (C228A)

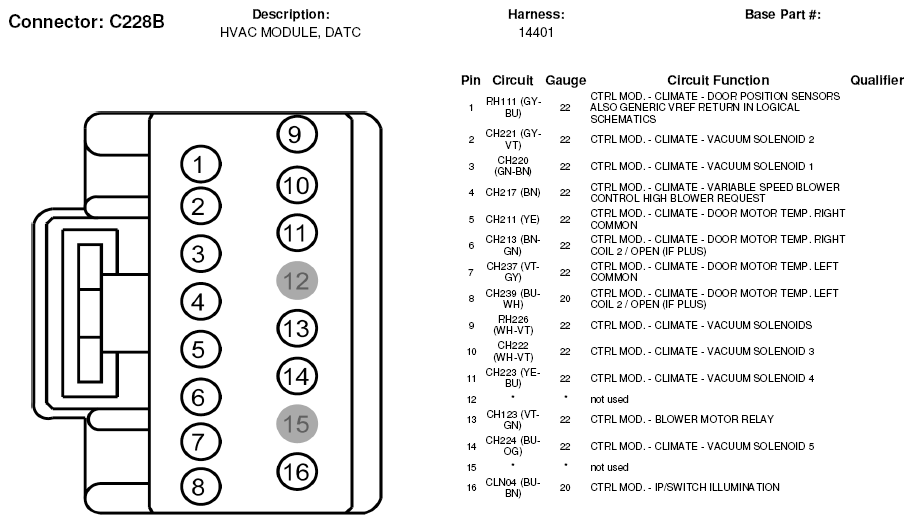

Fig 2: DATC HVAC Module Connector End View (C228B)
