Climate Control Assembly Connectors

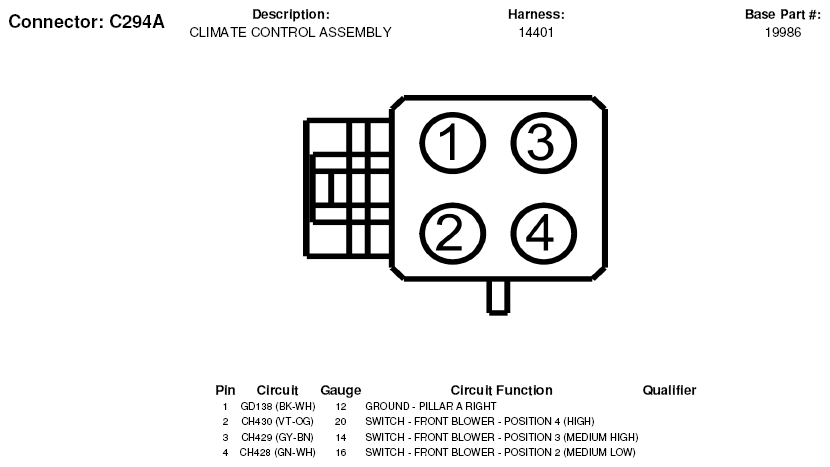

Fig 1: Climate Control Assembly Connector End View (C294A)
G05600676

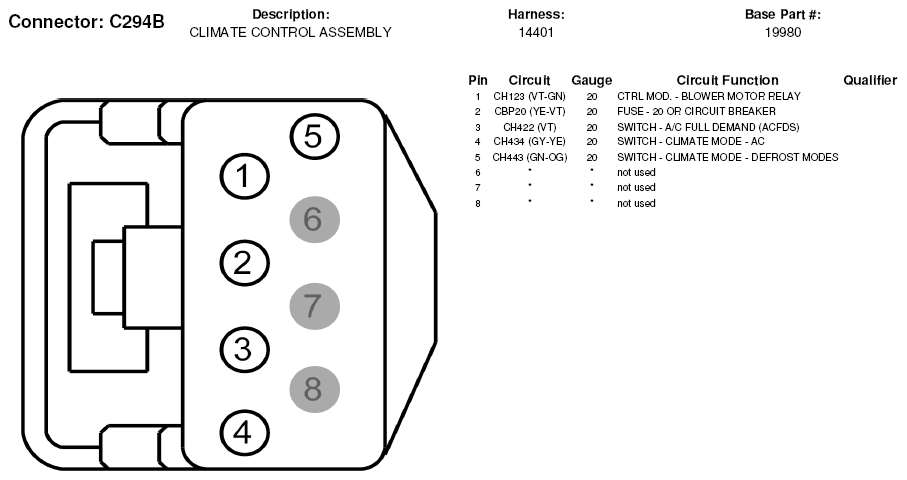

Fig 2: Climate Control Assembly Connector End View (C294B)
G05600677

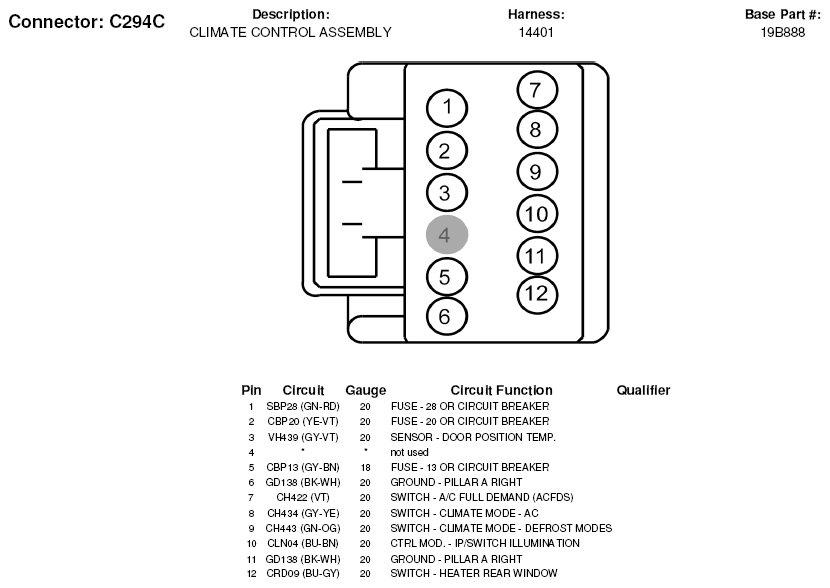

Fig 3: Climate Control Assembly Connector End View (C294C)
G05600678
