Trailer Tow Connector

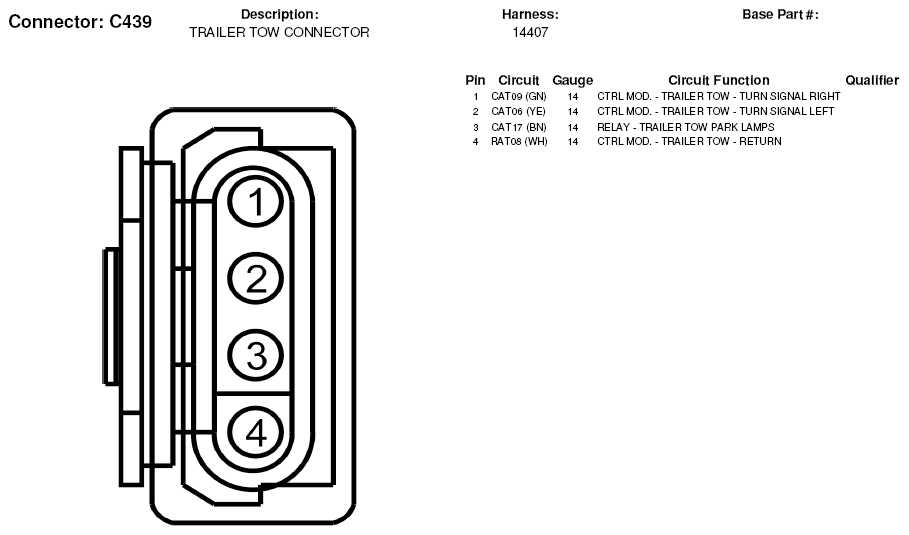

Fig 1: Trailer Tow Connector End View (C439)

G05600739

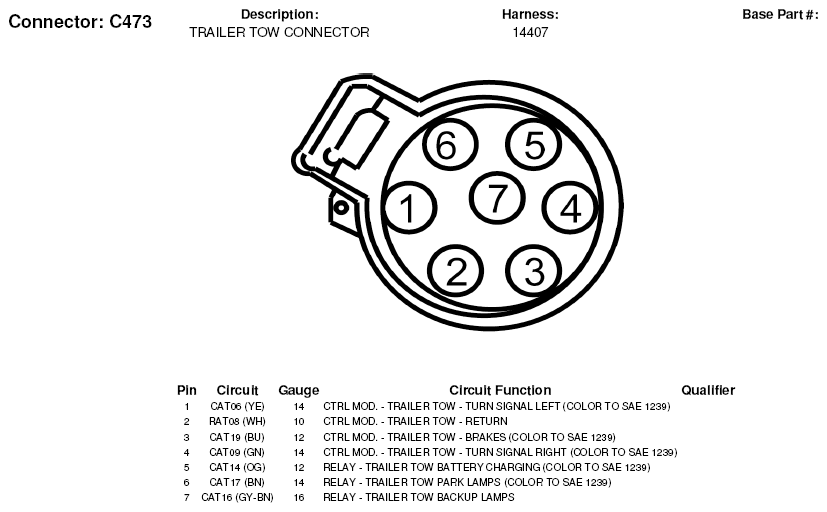

Fig 2: Trailer Tow Connector End View (C473)

G05600752
