Inertia Fuel Shutoff Switch Connector

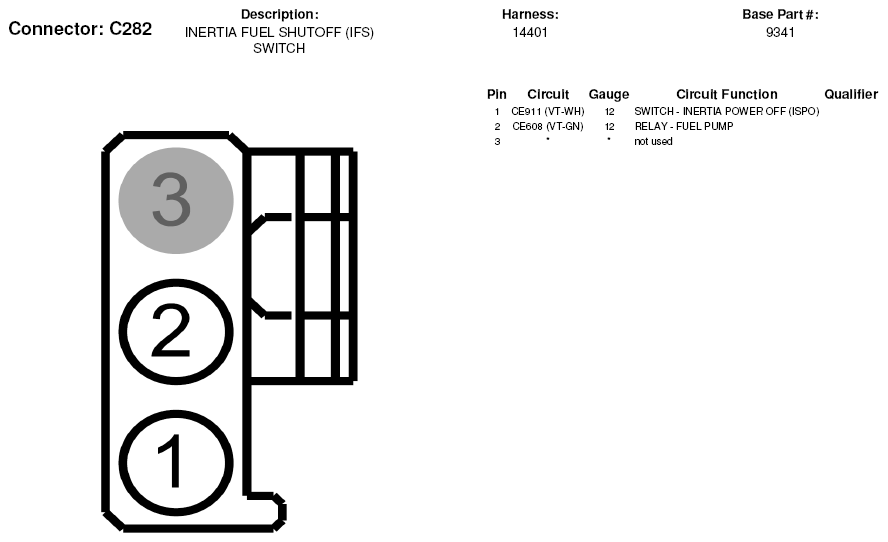

Fig 1: Inertia Fuel Shutoff Switch Connector End View (C282)

G05600669
