Fuel Pump: Notes

Special Tools

Illustration Tool Name Tool Number
GF0004227Courtesy of FORD MOTOR CO.
 Wrench, Fuel Tank Sender Unit 310-123 (SR-015312)

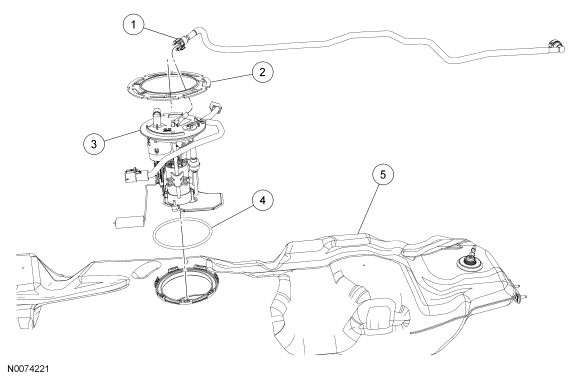

Fig 1: Fuel Pump Components
GF0045197Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Fuel supply tube-to-fuel pump quick connect coupling (part of 9J280)
2 9C385 Fuel pump locking ring
3 9H307 Fuel pump
4 9417 Fuel pump O-ring seal
5 9002 Fuel tank
