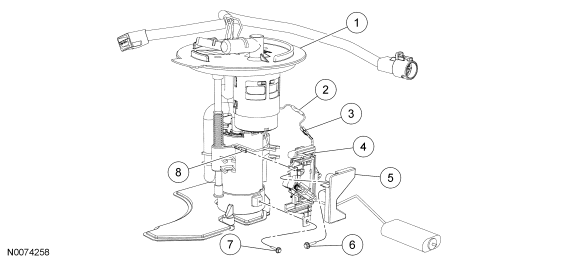

Fuel Level Sender: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | 9H307 | Fuel pump |
| 2 | - | Heat shrink tube |
| 3 | - | Fuel level sender wire electrical connector (part of 9A299) |
| 4 | - | Fuel level sender (part of 9A299) |
| 5 | - | Fuel level sender cover (part of 9A299) |
| 6 | - | Fuel level sender cover screw (part of 9A299) |
| 7 | - | Fuel level sender screw (part of 9A299) |
| 8 | - | Fuel level sender ground wire electrical connector (part of 9H307) |
