Throttle Body: Notes

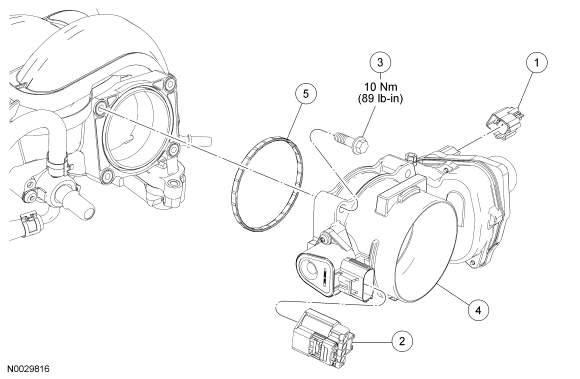

Fig 1: Exploded View Of Throttle Body With Torque Specification
GF0027048Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Electronic throttle control electrical connector (part of 12B637)
2 14A464 Throttle position (TP) sensor electrical connector (part of 12B637)
3 N806154 Throttle body (TB) bolt (4 required)
4 9F991 TB
5 9E936 TB gasket
